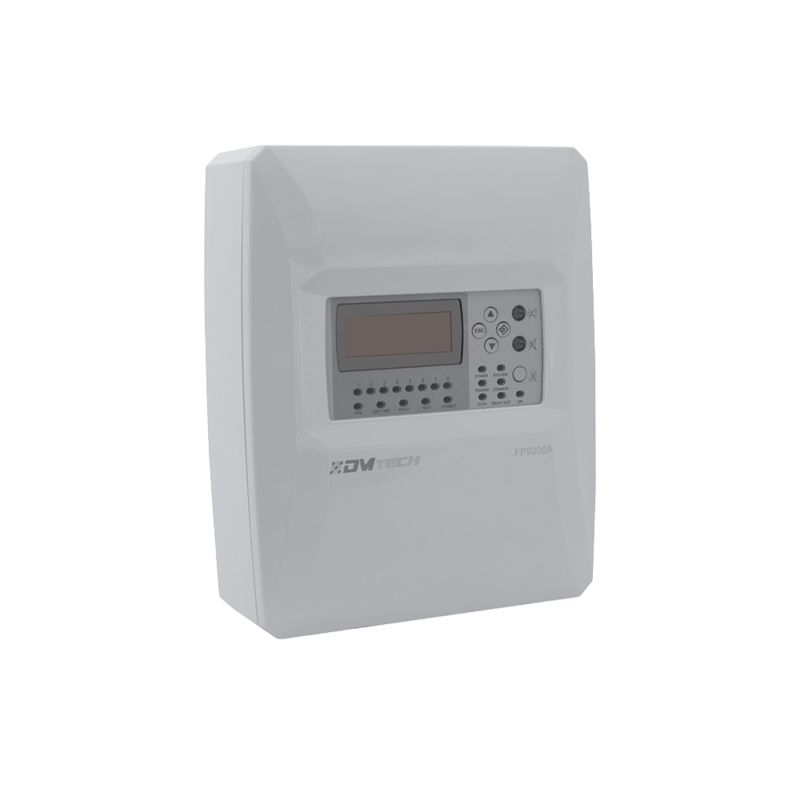

Addressable fire alarm panel, plastic box

Përshkrimi

Features • Loops: 1 (DMTech protocol) • Devices per loop: 250 • Maximum resistance of a loop – 100 Ohm • Maximum consumption of a loop – 500mA • Connecting line – two-wire shielded • Conventional line 1: (Up to 32 conventional fire detectors) • Zones: 8 • Outputs (monitored, relay type): 2 • Outputs (non monitored, programmable, relay type): 3 • Output for fault conditions( relay type, C/NC/NO): 1 • Memory LOG: 1024 events • Display: 4*20 symbols LCD • Multi language support: Yes • Programming: DMTech software • Standard: EN54 – 2/4 • Interfaces for communication with external devices – RS485 and USB. • Back-up Power Supply – 2 x 12V DC / Capacity C20 (4.5 or 5)Ah • Electrical output : (24±3.6)V / 2? • Main Power Supply 90 ÷ 264 VAC / 50 ÷ 60 Hz • Operating temperature minus 10°C to +40°C • Dimensions: 305 x 250 x 95 mm • Weight (without battery): 1.2kg
