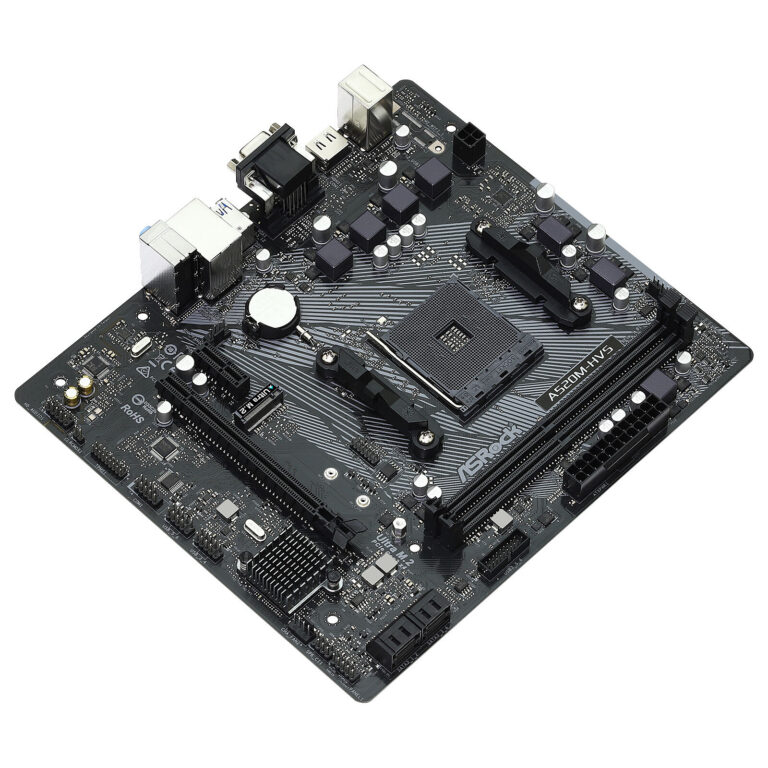

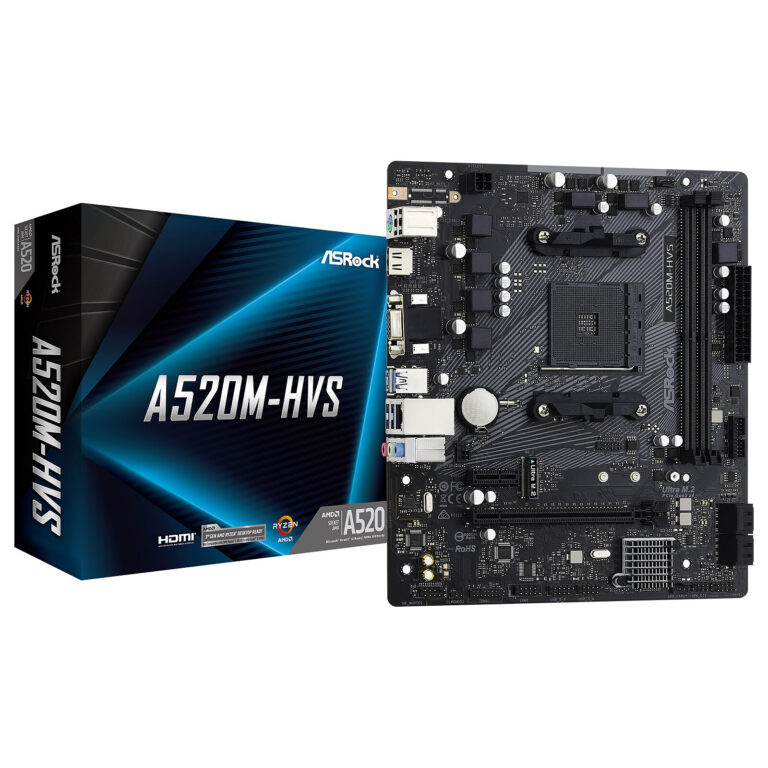

ASROCK A520M-HVS AM4

Përshkrimi

ASROCK A520M-HVS AM4 ASRock A520M-HVS: designed for the future! Based on the AMD A520 chipset, the ASRock A520M-HVS motherboard is designed to host AMD Ryzen processors on socket AM4 from Zen 2 generation onwards.It will allow the assembly of a high-performance multimedia or office configuration while keeping a reduced size.Thanks to the support of PCI-Express 3.0 16x graphics cards , SATA 6Gb/s and M.2 disks, DDR4 RAM and USB 3. 0,this motherboard has everything you need to put together a well-balanced PC at a reasonable cost. ASROCK A520M-HVS MOTHERBOARD ADVANTAGES • AMD AM4 socket for AMD Ryzen 3000/4000 processor • 2 Dual-Channel DDR4 4733+ MHz (OC) memory slots • 4 SATA 6Gb/s ports + 1x M.2 PCIe 3.0 x4 / SATA 6 Gb/s • 1x PCI-Express 3.0 16x slot • Micro-ATX format AMD RYZEN 3000 The AMD Ryzen 3000 processors are among the first 7nm PC processors to support the PCIe 4.0 interface. The third generation Ryzen , codenamed Matisse, impresses with its many cores and threads and very high base frequencies ! AMD’s Ryzen 3000 offers a (re)discovery of high-end performance for gaming, content creation and intensive multitasking. They allow you to do EVERYTHING even faster and more fluidly. • Unique Feature ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop • CPU – Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* – 6 Power Phase design *Please refer to CPU support list for details. • Chipset – AMD A520 • Memory – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB** – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Cezanne and Renoir), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support. For more details.Ryzen Series CPUs (Vermeer): Ryzen Series CPUs (Matisse): Ryzen Series APUs (Cezanne): Ryzen Series CPUs: SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. • BIOS – 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment • Graphics – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Dual graphics output: support D-Sub and HDMI ports by independent display controllers – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. • Audio – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) – Supports Surge Protection • LAN – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE • Slots – 1 x PCI Express 3.…
