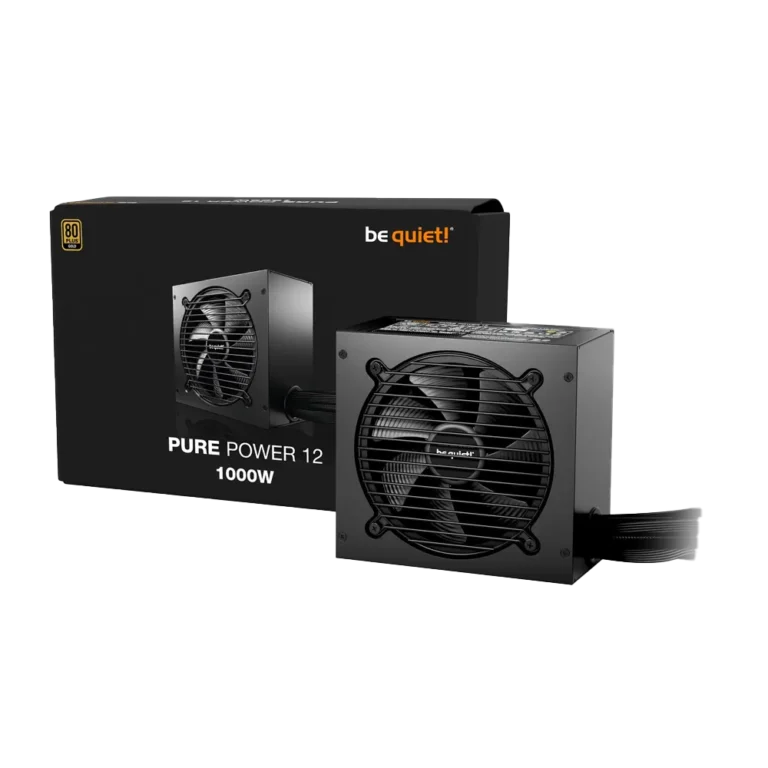

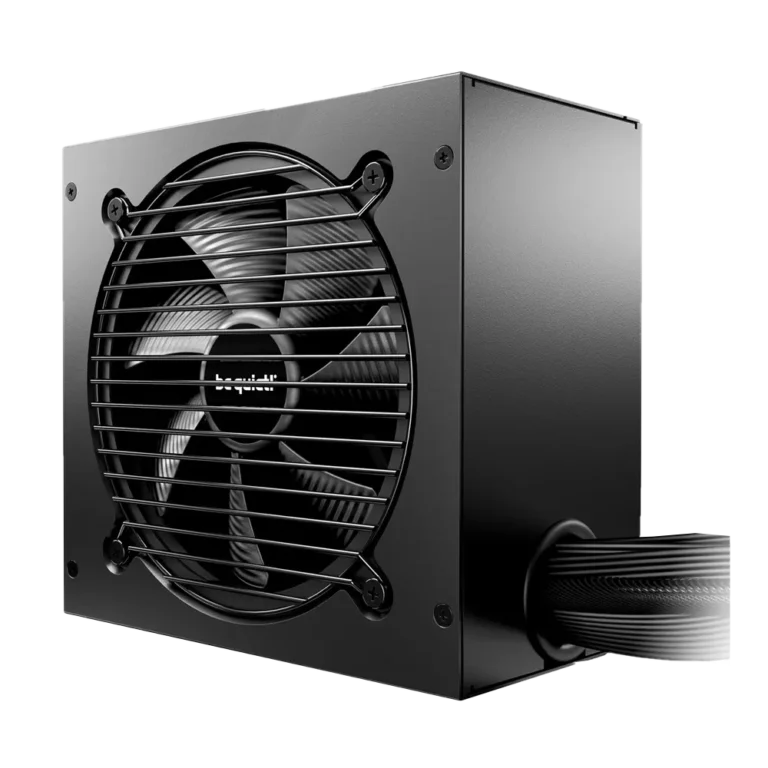

be quiet! PURE POWER 12 1000W Silent Essential 80+ Gold

Përshkrimi

Model Pure Power 12 1000 W Continuous power (W) 1000 Peak power (W) 1050 Form factor ATX 3.1 Form factor EPS 12V Version 2.92 Topology LLC + SR + DC/DC Digitally controlled – Voltage ( Vac ) 100 – 240 Frequency ( Hz ) 50 – 60 Input current (A) 12 / 6 Power factor at 100% load >0.98 Modern standby ✓ Power consumption in standby (W) <0.1 Average life time (h / 25°C) >100,000 Operating temperature up to (°C) 40 Infographics Efficiency 80 PLUS certification Gold Efficiency (%) at 230V, 2% load 66.3 Efficiency (%) at 230V, 10% load 89.2 Efficiency (%) at 230V, 20% load 92.7 Efficiency (%) at 230V, 50% load 92.9 Efficiency (%) at 230V, 100% load 90.6 Fan and cooling technology Cybenetics Noise Rating – Fan Silence-optimized be quiet! fan Fan size (mm) 120 Bearing technology Rifle Motor technology 4-pole fan motor Max. fan speed (rpm) 2000 dB(A) at 10% load 8.6 dB(A) at 20% load 8.9 dB(A) at 50% load 9 dB(A) at 100% load 31.6 Output Multi-rail operation ( 12V rails ) 0 12V single rail operation ✓ Overclocking key – +3.3V (A) 22 +5V (A) 22 +12V1 (A) 83.4 +12V2 (A) – +12V3 (A) – +12V4 (A) – +12V5 (A) – +12V6 (A) – -12V (A) 0,3 +5Vsb (A) 3 Max. combined power 12V (W) 1000 Max. combined power 12V-2×6 (W) 600 Max. combined power 3.3V + 5V (W) 120 Hold-up time at 100% load (ms) 17.8 Hold-up time at 80% load (ms) 22.0 Power good signal (ms) 100 – 150 Cables and connectors Modular cables – Sleeved cables ✓ Flat cables ✓ Maximum cable length (cm) 55 Cable length to motherboard (cm) 60 No. of cables 8 ATX -Motherboard ( 20+4-pin ) 1 P4 +4 (CPU) P4 +4 (CPU) P8 (CPU) 1 P4 (CPU) – 12V-2×6 cables 1 PCI-e 6+2-pin ( GPU ) 3 PCI-e 6-pin ( GPU ) – SATA 6 PATA 1 FDD (Floppy) – Protection OTP (over temperature protection) ✓ OCP (over current protection) ✓ OPP (over power protection) ✓ SCP (short circuit protection) ✓ OVP (over Voltage protection) ✓ UVP (under Voltage protection) ✓ SIP (Surge & Inrush protection) ✓ Safety certification BSMI – CB ✓ CCC – CE ✓ cRUus – cTUVus ✓ CU ✓ FCC ✓ RCM – TÜV ✓ UKCA ✓ IRAM – Environmental directives Energy Star 8.0 ErP ✓ WEEE ✓ RoHS ✓ Triman ✓ Scope of delivery Thumb screws – Screws ✓ Cable ties ✓ Velcro cable ties – User manual languages DE, EN, ES, FR, PL, RU, UA OCK slot bracket with switch / OCK jumper – SFX -to- ATX adapter bracket – Casing Dimensions without cable (L x W x H), (mm) 160 x 86 x 150 Weight (kg) 2.8 Color Black Service Warranty (Years) 10 Express replacement service in first year – International hotline / free of charge ✓ / DE, FR
