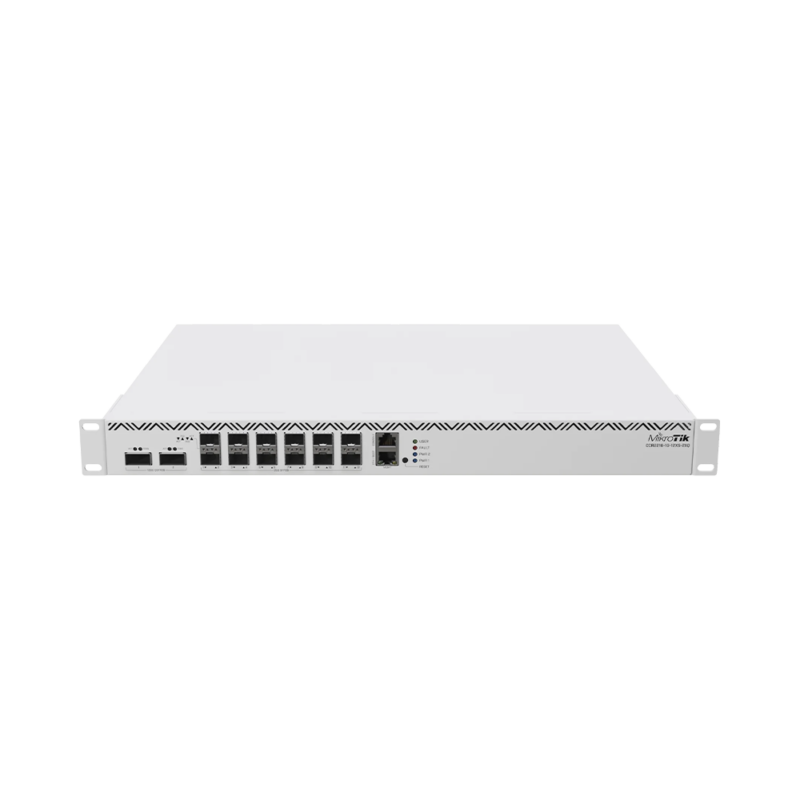

CCR2216-1G-12XS-2XQ

Përshkrimi

Here are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM , decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules. Specifications Details Product code CCR2216-1G-12XS-2XQ Architecture ARM 64bit CPU AL73400 CPU core count 16 CPU nominal frequency 2000 MHz Dimensions 443 x 367 x 44 mm RouterOS license 6 Operating System RouterOS (v7 only) Size of RAM 16 GB Storage size 128 MB Storage type NAND MTBF Approximately 200’000 hours at 25C Tested ambient temperature -20°C to 60°C IPsec hardware acceleration Yes Powering Details Number of AC inputs 2 AC input range 100-240 Max power consumption 128 W Max power consumption without attachments 80 W Cooling type 4 fans Ethernet Details 10/100/1000 Ethernet ports 1 Fiber Details Number of 25G SFP28 ports 12 Number of 100G QSFP28 ports 2 Peripherals Details Serial console port RJ45 Number of M.2 slots 2 Other Details CPU temperature monitor Yes PCB temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS IP 20
