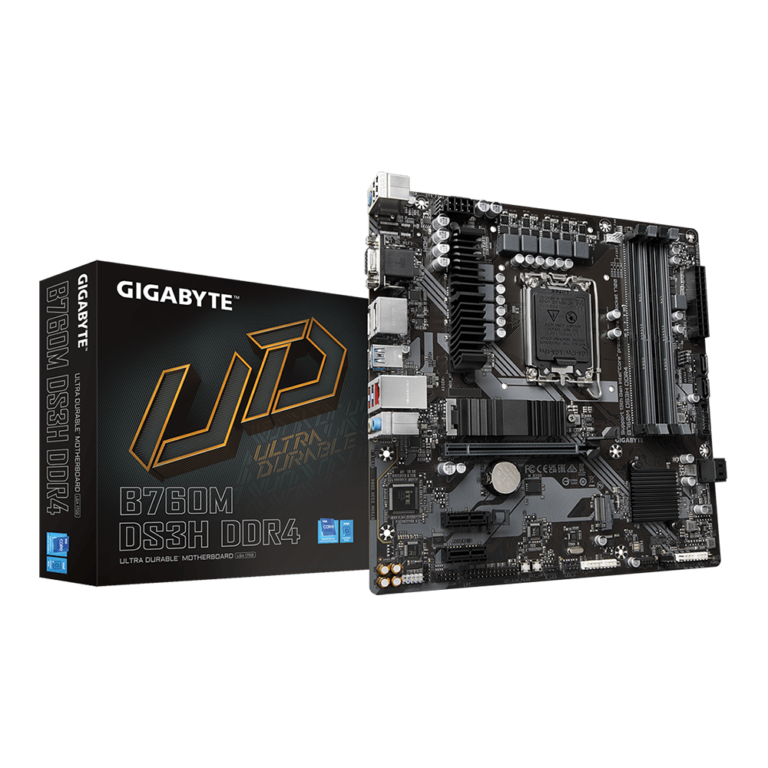

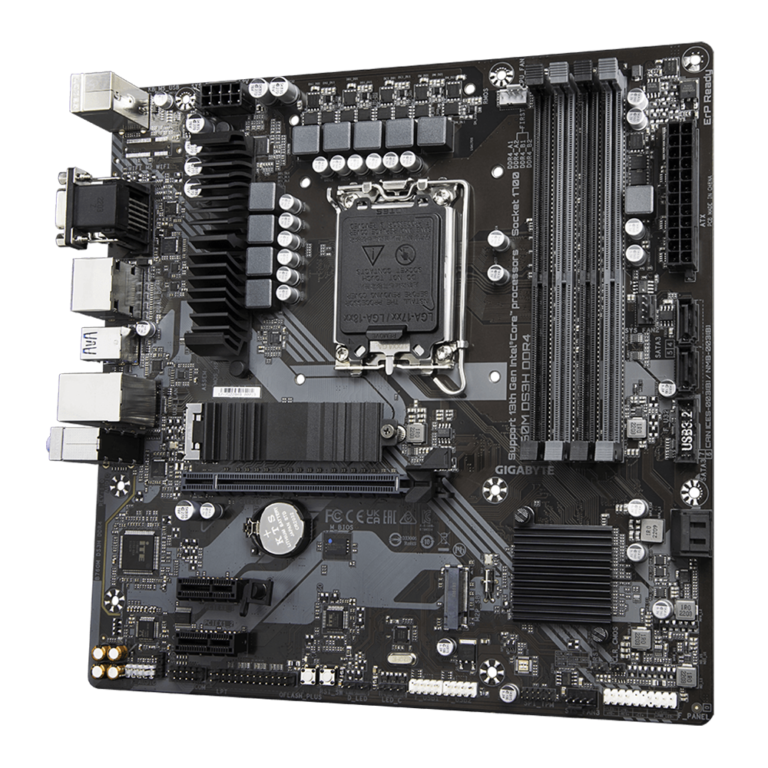

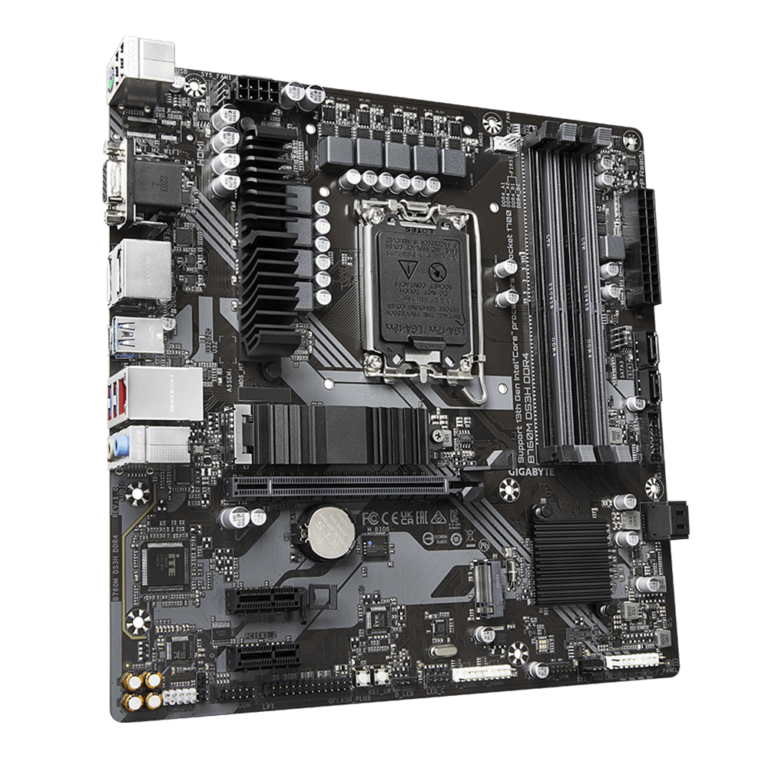

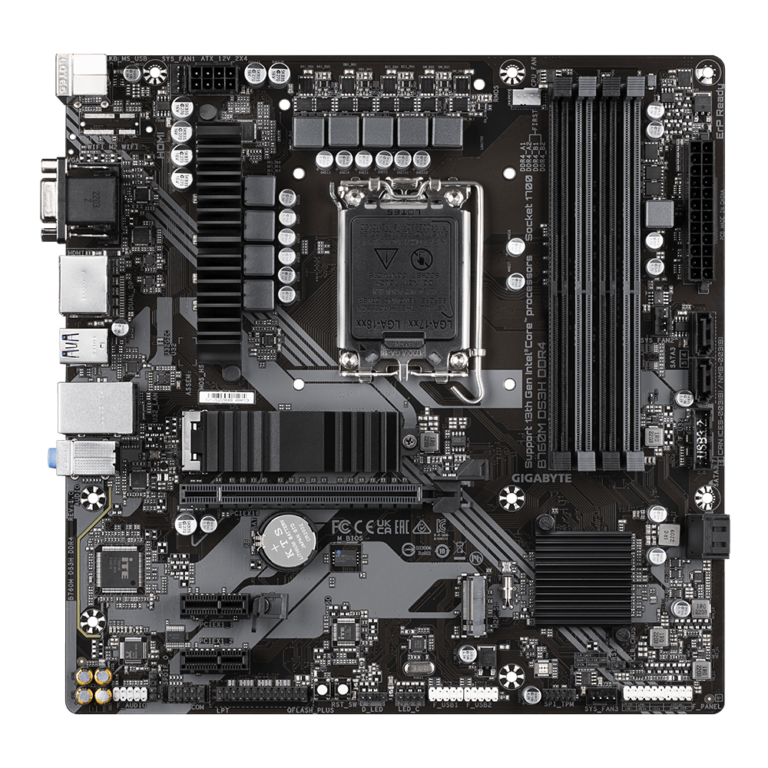

Gigabyte B760M DS3H DDR4 | M-ATX Intel S1700

Përshkrimi

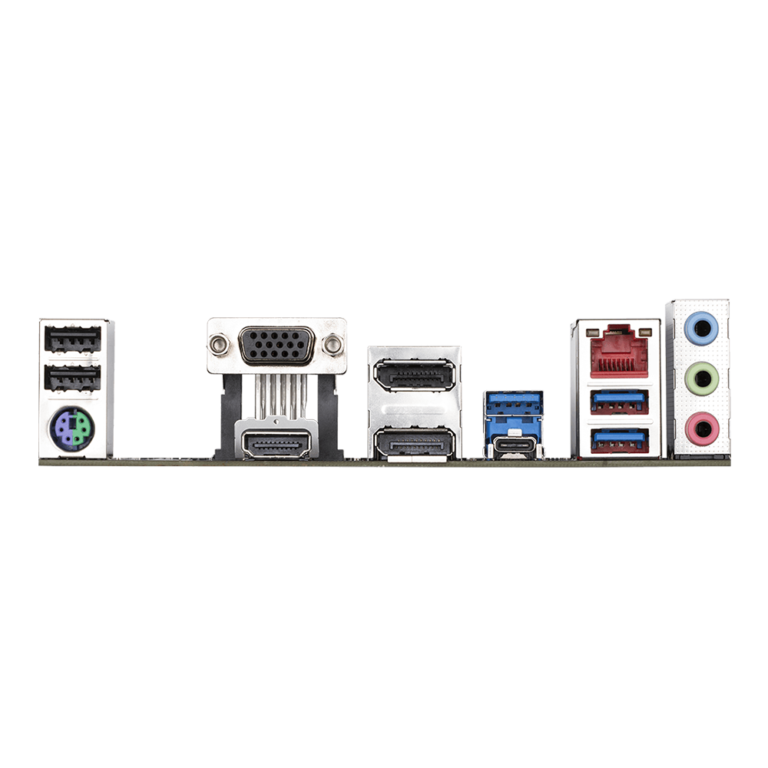

• CPU • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors • L3 cache varies with CPU (Please refer “CPU Support List” for more information.) • Chipset • Intel B760 Express Chipset • Memory • Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory • Dual channel memory architecture • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules • Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) • Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: • 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time • Audio • Realtek Audio CODEC • High Definition Audio • 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. • Support for S/PDIF Out • LAN • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) • Expansion Slots CPU: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 • Storage Interface CPU: • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) • 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices • USB Chipset: • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) • 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: • 4 x USB 2.0/1.1 ports available through the internal USB headers • Internal I/O Connectors • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 3 x system fan headers • 1 x addressable LED strip header • 1 x RGB LED strip header • 2 x M.2 Socket 3 connectors • 4 x SATA 6Gb/s connectors • 1 x front panel header • 1 x front panel audio header • 1 x USB 3.2 Gen 1 header • 2 x USB 2.0/1.1 headers • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) • 1 x serial port header • 1 x parallel port header • 1 x S/PDIF Out header • 1 x Q-Flash Plus button • 1 x reset button • 1 x reset jumper • 1 x Clear CMOS jumper • Back Panel Connectors • 2 x USB 2.0/1.1 ports • 1 x PS/2 keyboard/mouse port • 1 x D-Sub port • 1 x HDMI port • 2 x DisplayPorts • 3 x USB 3.2 Gen 1 ports • 1 x USB Type-C port, with USB 3.2 Gen 2 support • 1 x RJ-45 port • 3 x audio jacks • I/O Controller • iTE I/O Controller Chip • H/W Monitoring • Voltage detection • Temperature detection • Fan speed detection • Water cooling flow rate detection • Fan fail warning • Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. • BIOS • 1 x 128 Mbit flash • Use of licensed AMI UEFI BIOS • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 • Unique Features • Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. • Support for Q-Flash • Support for Q-Flash Plus • Bundled Software • Norton Internet Security (OEM version) • LAN bandwidth management software • Operating System • Support for Windows 11 64-bit • Support for Windows 10 64-bit • Form Factor • Micro ATX Form Factor; 24.4cm x 24.4cm
