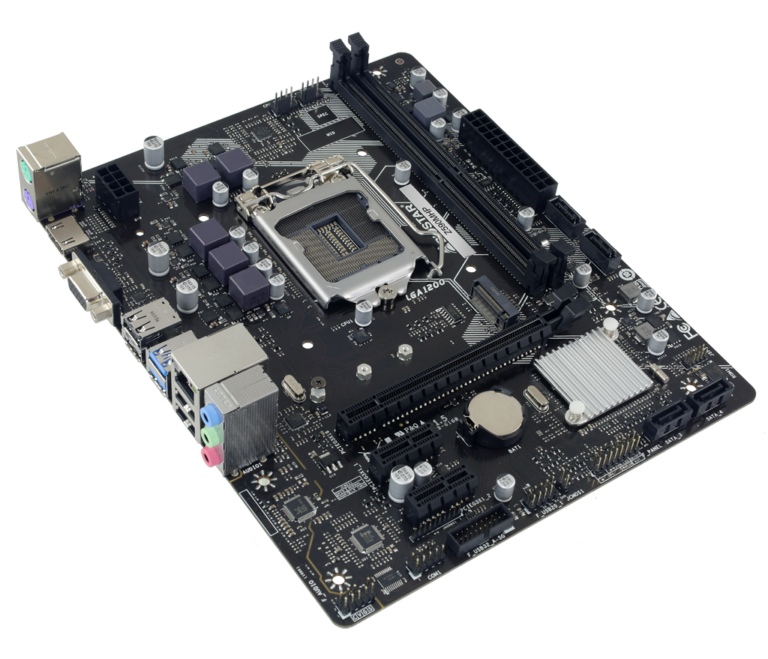

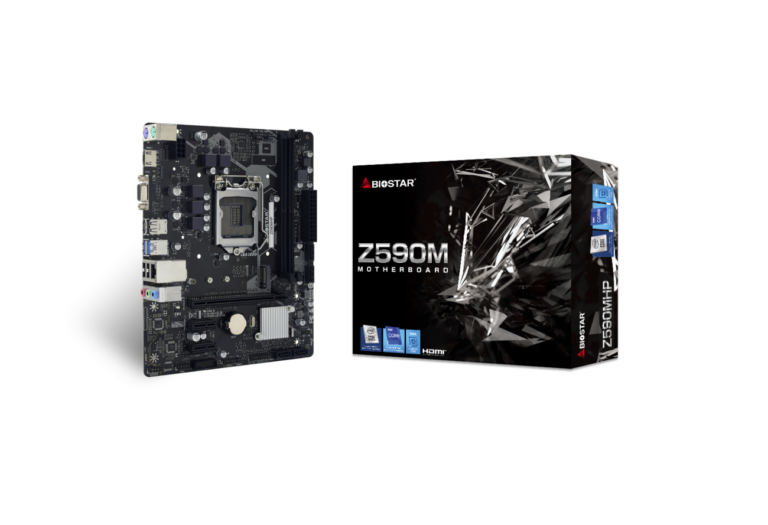

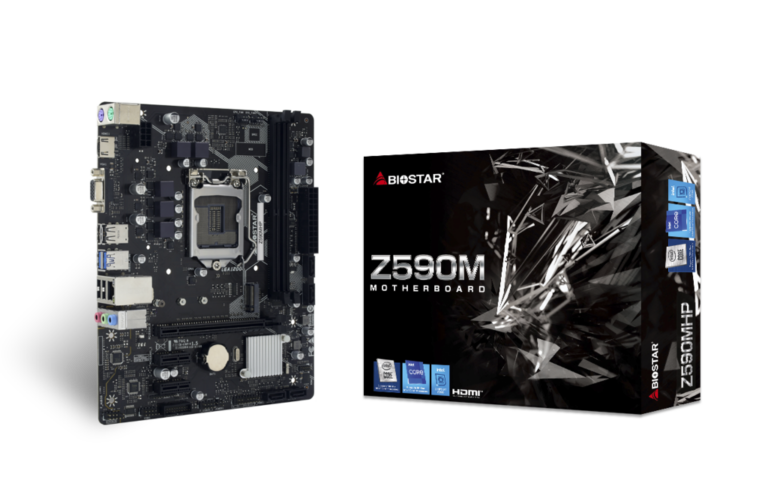

MBO BIOSTAR Z590MHP LGA1200

Përshkrimi

MBO BIOSTAR Z590MHP LGA1200 • Supports 10 th /11 th Generation Intel Core Processor • Intel Z590 single chip architecture • Supports 2-DIMM DDR4 up to 64 GB Memory • Supports PCIe 4.0 • Supports PCIe 3.0 M.2 (32Gb/s) • Supports USB 3.2 Gen11 Specifications Z590MHP Chipset Intel Z590 CPU SUPPORT Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors * Please refer to www.biostar.com.tw for CPU support list. MEMORY Supports Dual Channel DDR4 – 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP STORAGE 4 x SATA III Connector (6Gb/s) Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD * When using SATA SSD module on PCIE-M2_1 slot, the SATA_1 connector will be disabled. * Specifications vary by CPU types LAN Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability AUDIO CODEC Realtek ALC897 7.1 Channels, High Definition Audio USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) EXPANSION SLOT 2 x PCIe 3.0 x1 Slot 1 x PCle 3.0/ 4.0 x16 Slot (x16 mode) *The PCle 4.0 only depends on Rocket Lake CPUs. * Specifications vary by CPU types REAR I/O 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port (HDMI1.4) 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack INTERNAL I/O 4 x SATA III Connector (6Gb/s) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L ) OS SUPPORT Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. BUNDLE SOFTWARE BullGuard ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
