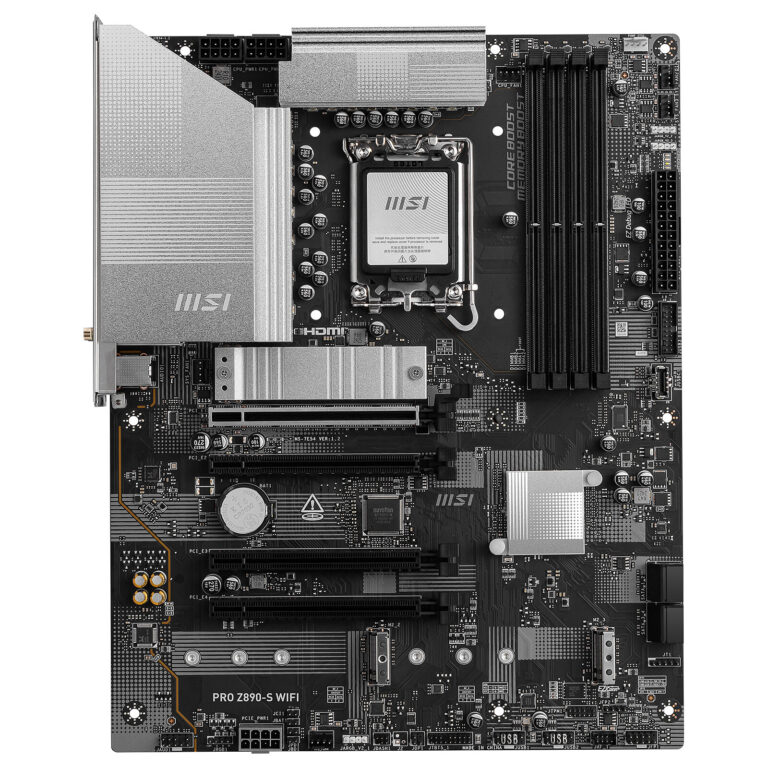

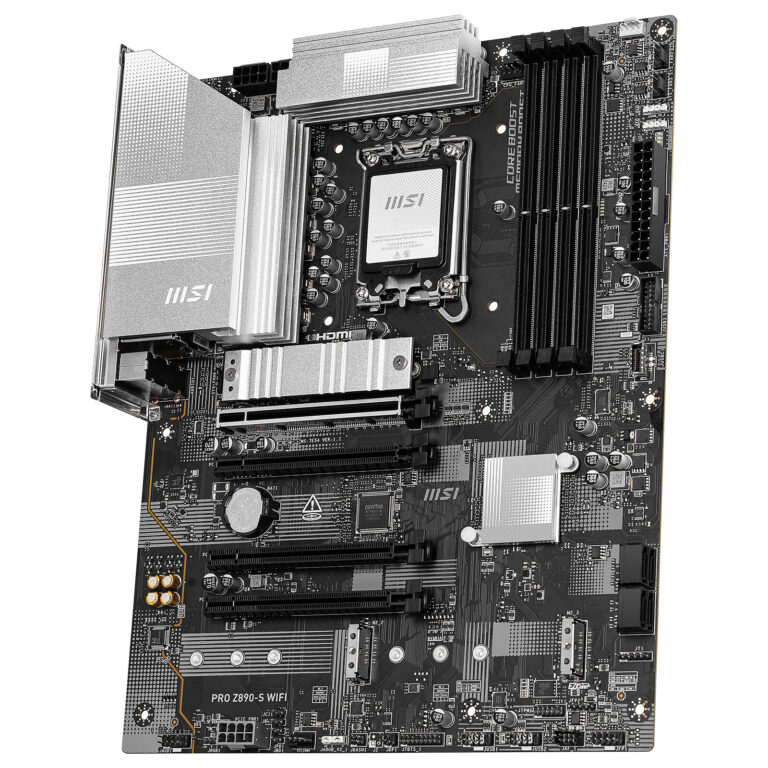

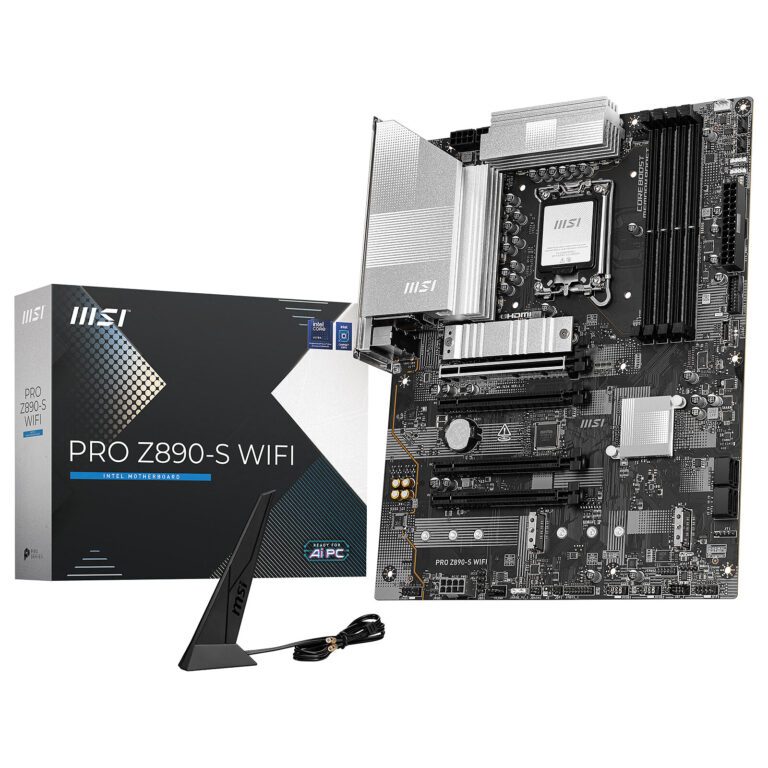

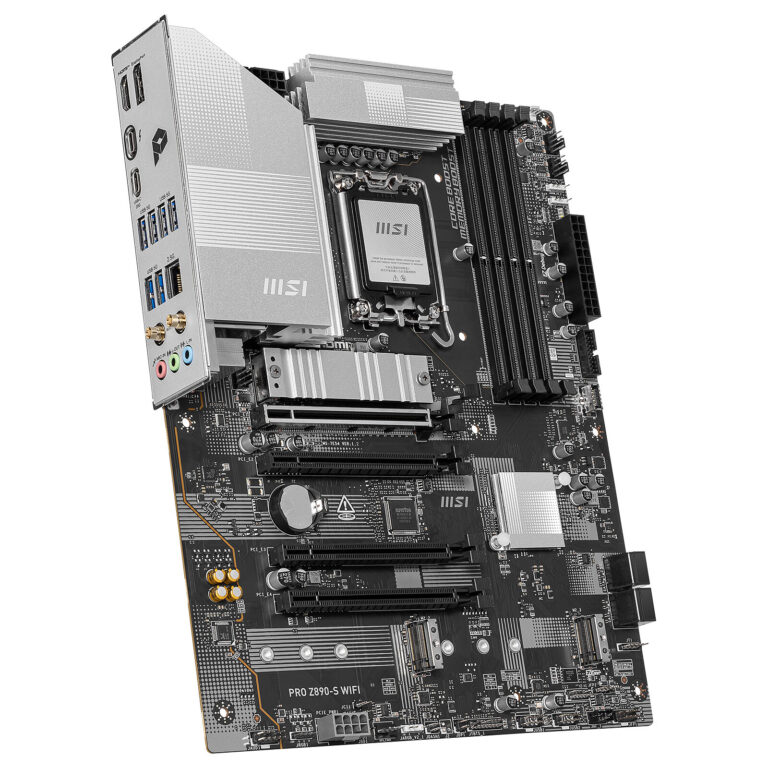

MBO MSI PRO Z890-S WIFI

Përshkrimi

MBO MSI PRO Z890-S WIFI • ATX Form Factor • Intel Z890 Chipset • LGA 1851 Socket • 4 x Dual-Channel DDR5 Slots • 4 x SATA | M.2 PCIe 5.0 | M.2 PCIe 4.0 • PCIe 5.0, 4.0 & 3.0 x16 Slots • Thunderbolt 4 | USB 3.2 Gen 1, 2 & 2×2 • Wi-Fi 7 | Bluetooth 5.4 | 2.5GbE • Realtek 7.1-Channel Audio • Windows 11 (64-Bit) Compatible Processor and Socket Support Supports Intel Core Ultra processors (Series 2) for the LGA 1851 socket. Wi-Fi 7 (802.11be) Wi-Fi 7 (802.11be) has a 320 MHz channel, achieving a maximum transmission speed of 5.8 Gb/s, which is 2.4x faster than Wi-Fi 6/6E. Thunderbolt 4 Port Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, daisy-chain, multi-port accessory architecture, and USB4 compliant. 20 Gb/s USB 3.2 Gen 2×2 A built-in USB 3.2 Gen 2×2 port offers transmission speeds of 20 Gb/s, which is 4x faster than USB 3.2 Gen 1. DDR5 Memory DDR memory performance is enhanced with DDR5 and MSI Memory Boost technology. Dual-channel DDR5 memory is supported at speeds up to 8600+ MT/s (OC). Enhanced Power Design 12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer PCB. Frozr Guard Extended Heat Sink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are built for high performance and non-stop experience. EZ DIY EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna Lightning Gen 5 PCIe 5.0 x4 delivers bandwidth of up to 128 GB/s for compatible M.2 SSDs. 2.5G LAN Network Solution The 2.5GbE LAN solution delivers an improved network experience. Extended Heat Sink Design MSI’s extended PWM heat sink and enhanced circuit design ensures even high-end processors run at full speed. M.2 Shield FROZR A strengthened built-in M.2 thermal solution keeps M.2 SSDs safe while preventing throttling, making them run faster. Pre-installed I/O Shielding Better EMI protection and more convenience during installation. Frozr AI Cooling Detects CPU & GPU temperatures and automatically adjusts the system fan accordingly. Audio Boost Reward your ears with studio-grade sound quality for an immersive gaming experience. MBO MSI PRO Z890-S WIFI Chipset Intel Z890 CPU Socket LGA 1851 Memory Slots 4x 288-Pin Memory Support DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s Show Less Storage Slots 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) Expansion Slots 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode) Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support Form Factor ATX CPU Chipset Intel Z890 CPU Socket LGA 1851 Back Panel I/O USB 1x USB-C (USB 3.2 Gen 2×2) 6x USB-A (USB 3.0 / 3.1/3.2 Gen 1) Thunderbolt 1x Thunderbolt 4 Display 1x HDMI 2.1 1x DisplayPort 1.4 Audio 3x 1/8″ / 3.5 mm Ethernet / Controller 1x Realtek 8125D 2.5Gigabit Wi-Fi Antenna 2x Connector Memory Memory Slots 4x 288-Pin Memory Support DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s Maximum Capacity 256 GB Channel Architecture Dual Channel ECC Support Non-ECC Unbuffered Storage Expansion SATA 4x SATA III Storage Slots 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) Optane Memory Support No RAID Support RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA) Internal I/O Expansion Slots 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode) USB 1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) Air Cooling 1x 4-Pin CPU 4x 4-Pin System Liquid Cooling 1x 4-Pin Pump Power Connectors 1x 24-Pin Mainboard 2x 8-Pin CPU 1x 8-Pin ATX Security Chassis Intrusion, TPM Header LED Header 4x RGB Audio 1x Speaker Diagnostics 2-Digit Debug LED, Clear CMOS, Flash BIOS Add-On 1x Tuning Controller 1x Thunderbolt Header BIOS ROM 256 Mb Front Panel I/O Front Panel I/O AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2 Audio Audio Codec Realtek ALC897 (7.1-Channel) DAC No Wireless Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support Bluetooth 5.4 Module Support 1 E Key M.2 Software OS Compatibility Windows 11 (64-Bit Only) Physical Form Factor ATX Dimensions 12.0 x 9.60″ / 304.8 x 243.84 mm
