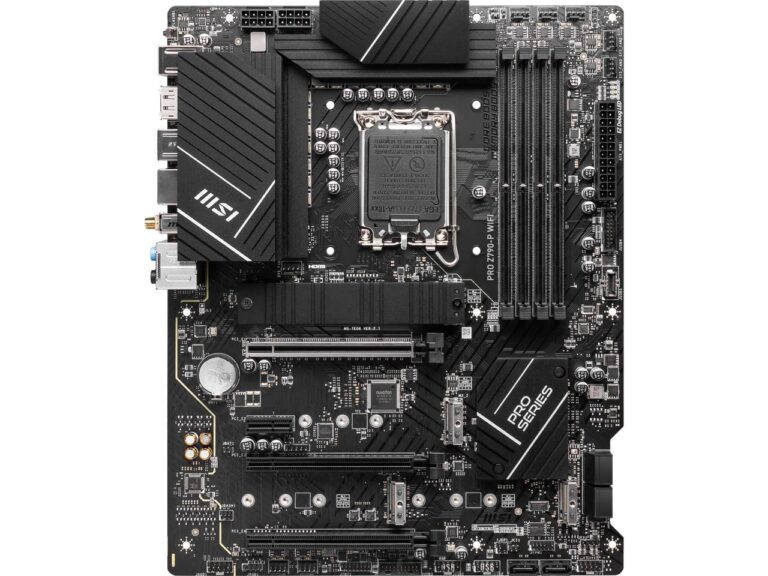

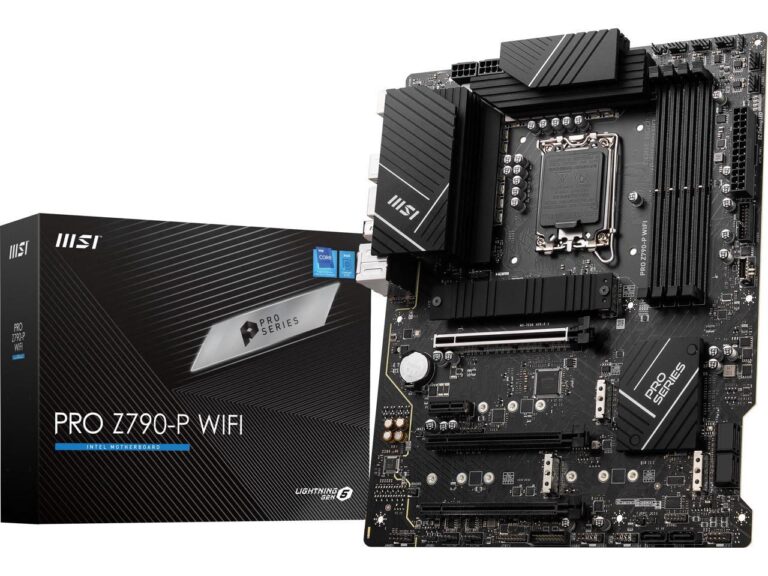

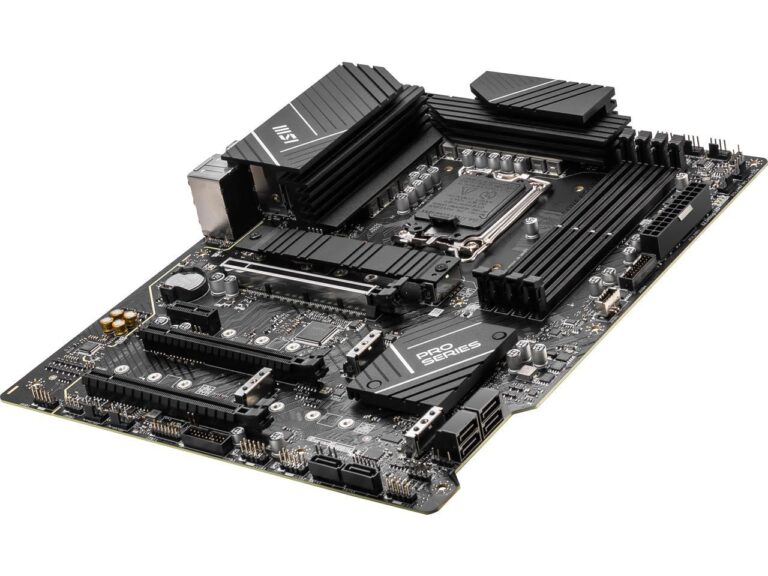

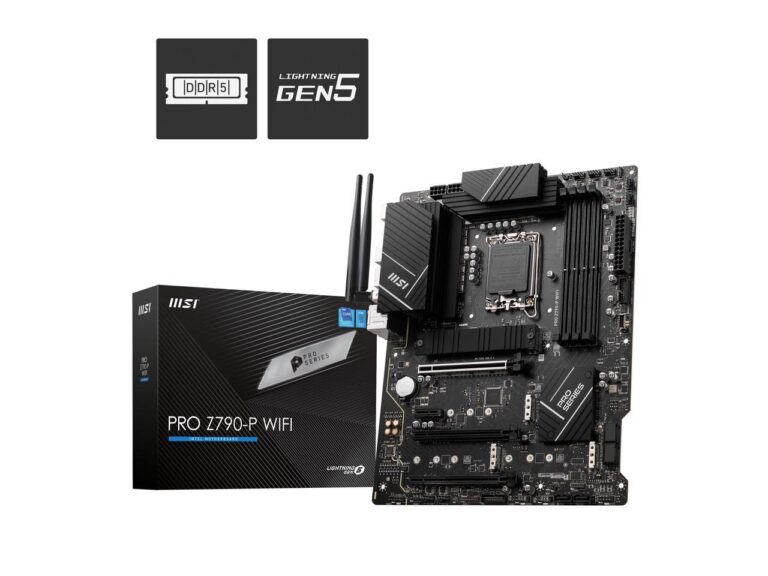

MBO Z790-P WIFI MSI PRO DDR5 ATX

Përshkrimi

MBO Z790-P WIFI MSI PRO DDR5 ATX • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information • Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors. • Latest DDR5 Memory: A huge step of DDR5 performance enhancement with the latest DDR5 memory and MSI memory boost technology. • Lightning Gen 5: The latest PCIE 5.0 solution with up to 128 GB/s bandwidth for maximum transfer speed. • Wifi-6E: the latest wireless solution support 6GBz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. • Lightning USB 20G: Built-in USB3.2 Gen 2X2 port. • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit designs ensures even high-end processors to run in full speed. • M.2 Shield FROZR: Strengthened build- in M.2 thermal solution. Keeps M.2 SSDs safe. • 2.5G network solution: Featuring premium 2.5 LAN to delivery better network experience. • EZ Debug Led: Easiest way to troubleshoot. Model Brand MSI Model PRO Z790-P WIFI Supported CPU CPU Socket Type LGA 1700 CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Chipsets Chipset Intel Z790 Memory Number of Memory Slots 4x288pin (DDR5) Memory Standard Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: – 1DPC 1R Max speed up to 7000+ MHz – 1DPC 2R Max speed up to 6400+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory Supported 192GB Channel Supported Dual Channel Expansion Slots PCI Express 5.0 x16 PCI_E1 slot (From CPU) – Supports up to PCIe 5.0 x16 PCI Express 4.0 x16 PCI_E3 slot (From Z790 chipset) – PCI_E3 supports up to PCIe 4.0 x4 PCI Express 3.0 x16 PCI_E4 slot (From Z790 chipset) – PCI_E4 supports up to PCIe 3.0 x1 PCI Express x1 1x PCIe x1 slot (From Z790 chipset) – PCI_E2 supports up to PCIe 3.0 x1 Storage Devices SATA 6Gb/s 6x SATA 6Gb/s ports (From Z790 chipset) M.2 1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports SATA 6Gb/s – Supports 2242/ 2260/ 2280 storage devices SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Onboard Audio Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels Onboard LAN LAN Chipset 1x Intel 2.5Gbps LAN controller Max LAN Speed 2.5Gbps Wireless LAN Intel Wi-Fi 6E – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Bluetooth – Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. Rear Panel Ports Back I/O Ports 1x Flash BIOS button 1x PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) 1x DisplayPort 1x HDMI port 1x LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi Antenna connectors 6x Audio jacks Internal I/O Connectors Onboard USB 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) – Supports additional 4 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) – Supports additional 4 USB 2.0 ports Other Connectors Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectorsSystem Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) Jumpers 1x Clear CMOS jumper LED Features 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin ARGB Gen2 LED connectors Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12.0″ x 9.6″ Power Pin 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors Windows Compatibility Windows 11 Supported Features Features MSI Center – LAN Manager – Mystic Light – Frozr AI Cooling – User Scenario – True Color – Live Update – Super Charger – Speed UpCooling – M.2 Shield Frozr – Pump Fan – Smart F…
