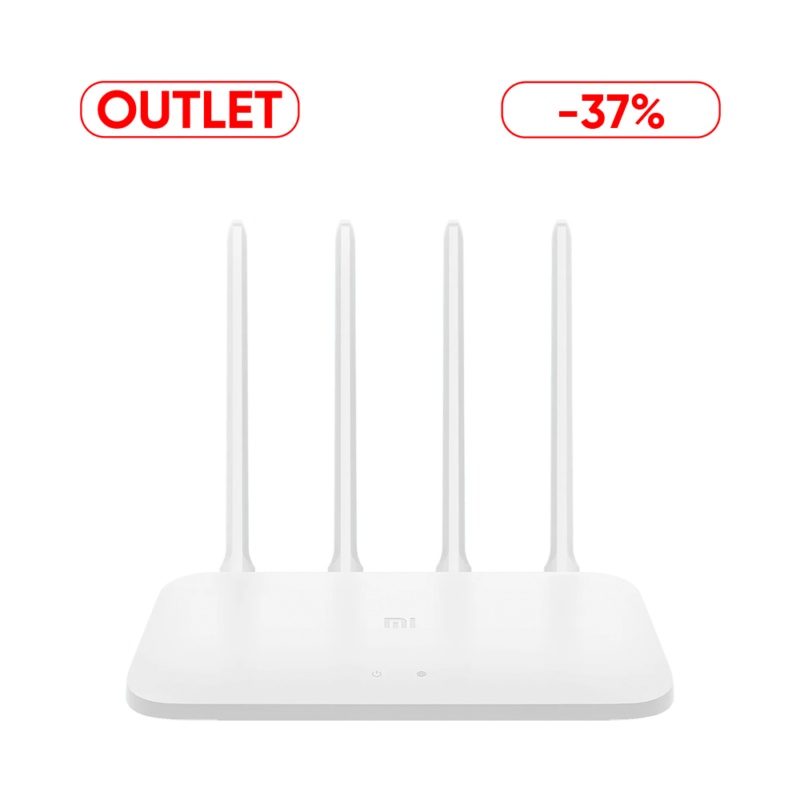

Mi Router 4C

Përshkrimi

Hardware configuration Processor : MT7628DA Internal memory: 64MB DDR2 2.4Ghz : Integrated LNA and PA 5GHz : Not supported Operating humidity : 10%–90% RH (no condensation) Storage humidity : 5%–90% RH (no condensation) Protocol standards : IEEE 802.11b/g/n IEEE 802.3/3u ROM : 16MB NorFlash 2.4GHz Wi-Fi : 2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps) 5GHz Wi-Fi : Not supported Antennas : 4x external single band antennas Operating temperature : 0–40°C Storage temperature : -40–70°C Warranty information: 1 year whole device warranty Certification standards : GB9254-2008 YD/T993-1998 GB4943.1-2011 Hardware interface : Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX) One system factory settings reset button One orange/blue/purple system status light; one blue external network interface status light One 10/100M self-adaptive WAN port (Auto MDI/MDIX) One power input interface Wireless specifications Singal band : 2.4GHz Modulation 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) 11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 Reception sensitivity : 11Mbps: ? -85dBm, 54Mbps: ? -72dBm, HT20 MCS7: ? -69dBm, HT40 MCS7: ? -66dBm Software specifications Operating system : Mi WiFi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software Wireless security : WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding Management application : Supports web, iOS, and Android
