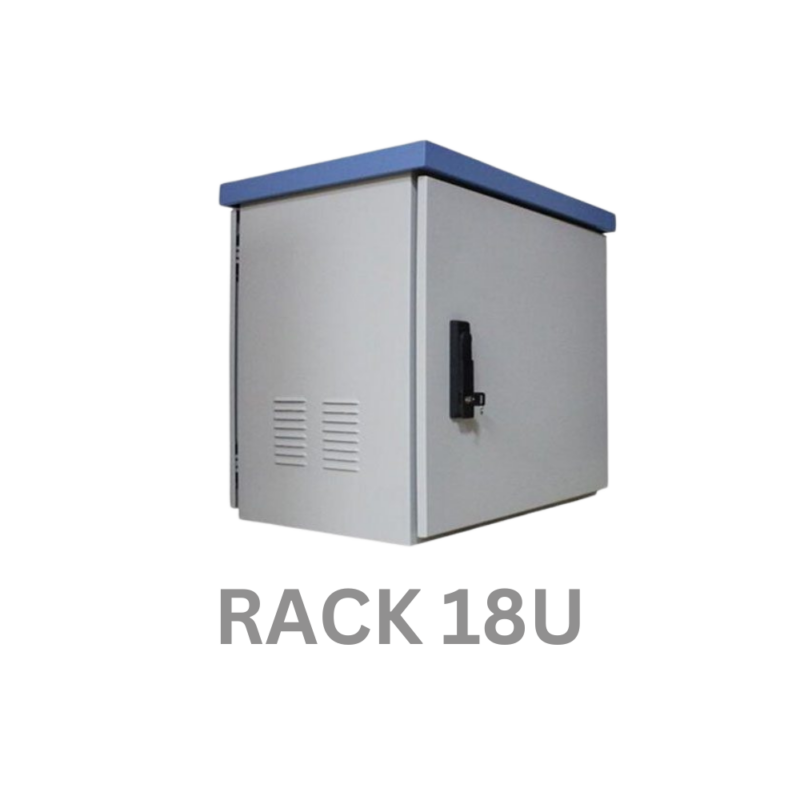

Outdoor rack IP55 18U

Përshkrimi

Product Description Product Description IP55 19?? Outdoor Cabinets for Telecommunication Description • 19 inch street cabinet,outdoor application • Reliable 19? international structure, Double wall type • Outdoor floor standing or fixed on poles • Front single solid metal door with handle lock • Enhance door hinges with 130 degrees operation angle • Rear single solid metal panel • Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm • Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable • Varies specification upon customers’ special requirements Standard and Material: Comply with ANSI/EIA,RS-310-D;IEC297 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard. Surface Finish: Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating Material: SPCC cold rolled steel or Zink-plated panel or stainless steel Thickness: Mounting profile:2.0mm,others: 1.50mm IP degree: IP-55 Color:Body color: RAL5012(Top cover and base);RAL7035(The others)
