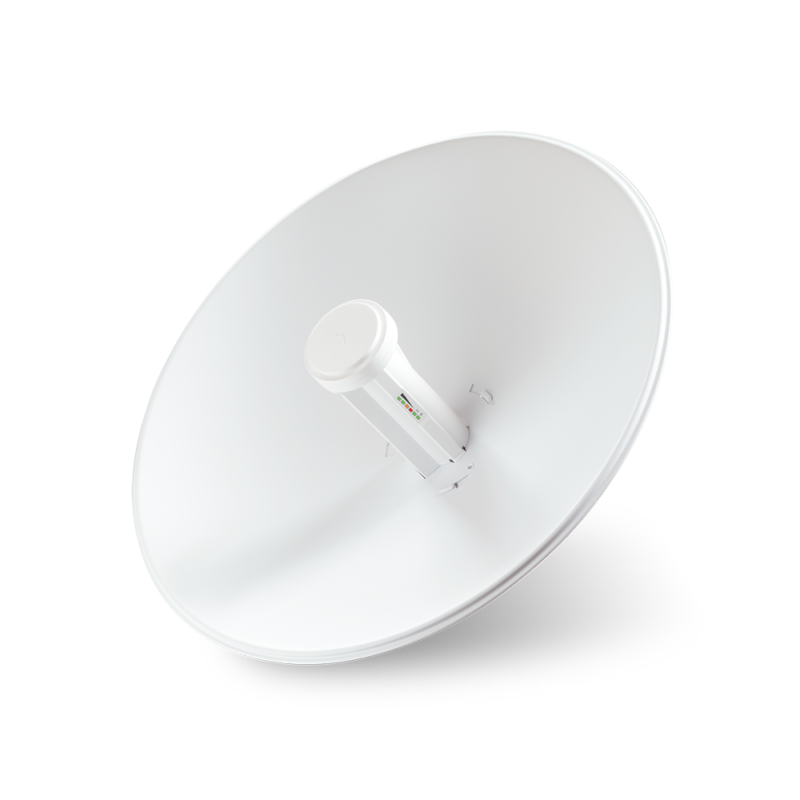

PowerBeam M5 – 400

Përshkrimi

Specification • Processor Specs Atheros MIPS 74Kc, 560 MHz • Memory 64 MB DDR2, 8 MB Flash • Networking Interface (1) 10/100/1000 Ethernet Port • Wireless Approvals FCC, IC, CE • RoHS Compliance Ye • Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83 in) • Weight 1.753 kg (3.87 lb) • Power Supply 24V, 0.5A Gigabit PoE • Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return) • Max. Power Consumption 8W • Gain 25 dBi • Operating Frequency Worldwide: 5170 – 5875 MHz USA: 5725 – 5850 MHz • Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph) • Wind Survivability 200 km/h (125 mph) • LEDs (1) Power, (1) LAN, (4) WLAN • Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels • Channel Sizes 5/8/10/20/30/40 MHz • Polarization Dual Linear • Enclosure Outdoor UV Stabilized Plastic • Mounting Pole-Mount Kit Included • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV • Operating Temperature -40 to 70° C (-40 to 158° F) • Operating Humidity 5 to 95% Non-Condensing • Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 • Vibration Test IEC 68-2-6 • Temperature Shock Test IEC 68-2-14 • UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 • Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
