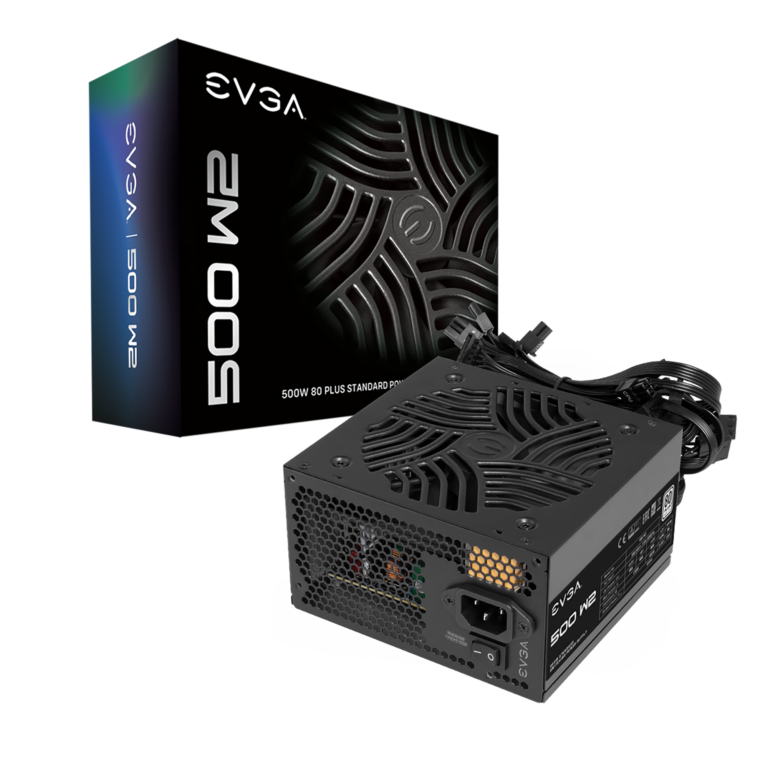

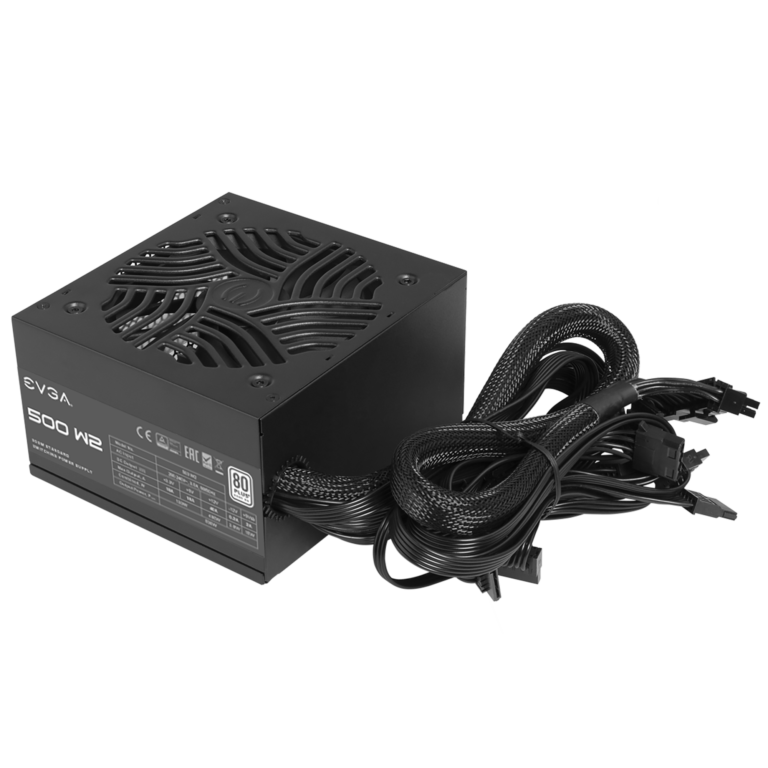

PSU 500W 80+ WHITE EVGA W2

Përshkrimi

PSU 500W 80+ WHITE EVGA W2 About this item • An Ultra-Quiet 120mm Fan • Provides up to 40A/480W on the +12V rail • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection) • 80 PLUS White certified, with 85% efficiency or higher under typical loads CABLE LENGTH ATX Cable 1x 550mm EPS Cable 1x 600mm PCIE Cable 1x 550mm, 670mm SATA Cable 2x 450mm, 570mm, 690mm Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm, 810mm(f) AC Power 1x 1200mm Modular Cable Type No CONNECTOR QUANTITY 24 Pin ATX 1x 24pin (20+4) EPS (CPU) 1x 8pin (4+4) PCIE 2x 8pin (6+2) SATA 6x Four-Pin Peripheral 3x Floppy 1x POWER SPECS AC Input 200-240V~, 3.5A, 60/50 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 18A 18A 40A 3A 0.3A 130W 480W 15W 3.6W Total 500W ADDITIONAL DETAILS Operating Temperature 0° to 40° C Japanese Capacitors No ECO Mode No MTBF 100,000 Hours Net Weight 4 lbs Size 85mm (H) x 150mm (W) x 140mm (L) Approvals TUV, CB, CE, RCM, CCC, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 120mm Sleeve Bearing
