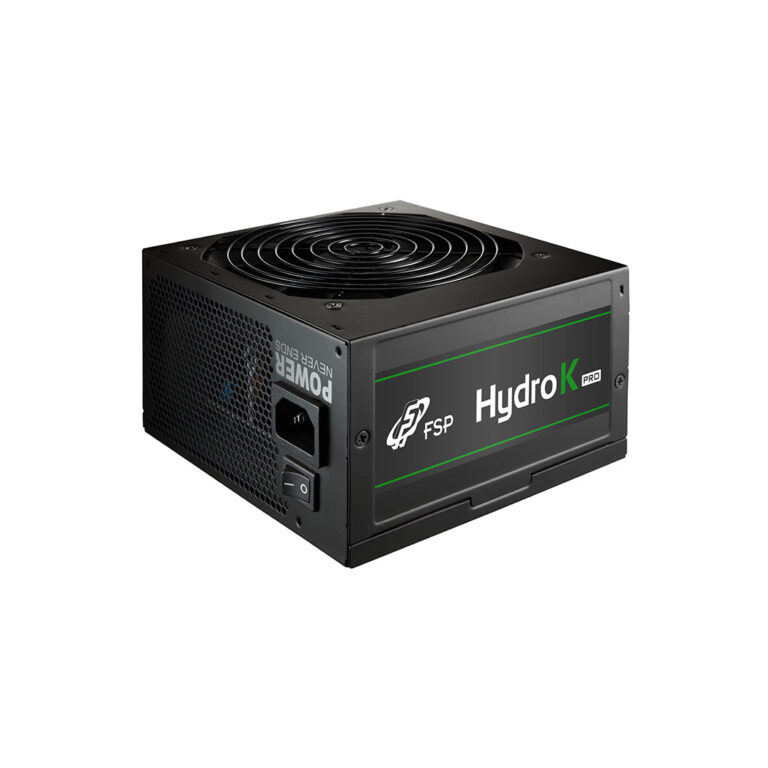

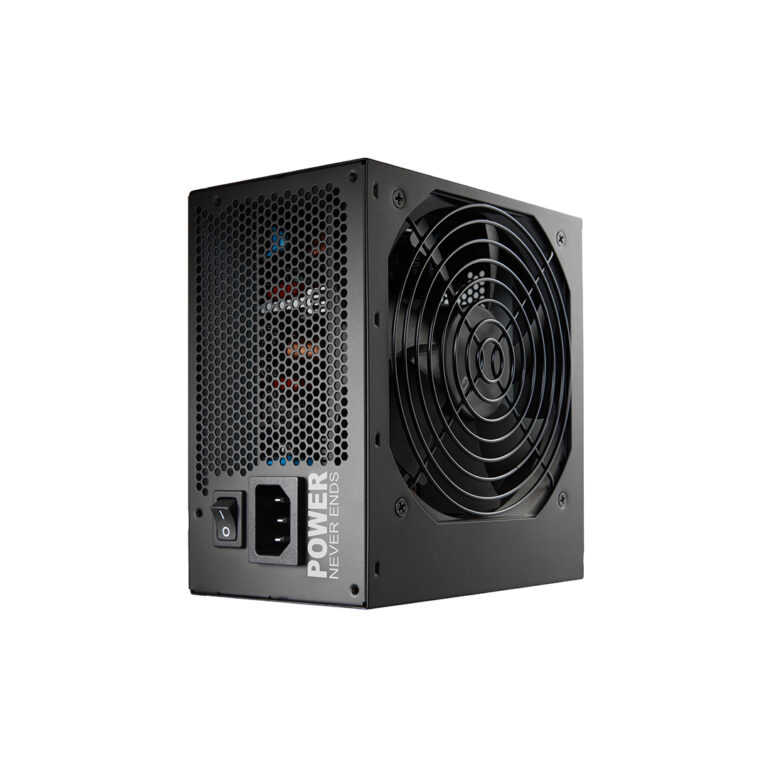

PSU 600W 80+ HYDRO K PRO

Përshkrimi

PSU 600W 80+ HYDRO K PRO Up-to-date Circuit Design A dual forward topology integrated with active PFC and PWM technology and double EMI filter delivers full power and enhance stability to your system. Stable DC to DC Output Quality DC to DC modules with low ripple noise and prolongs system lifetime. Double Layer EMI Filter To reduce electromagnetic interference and suppress noise. Low Noise, Less Heat Hydro K PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one. We know what builders need +12V Single Rail Design Designed for power-intensive VGA cards, provides strong power to any overloading condition. 80 Plus Bronze Certification With an 230V 80 Plus rating, Hydro K PRO series delivers over 88% high efficiency. Energy Related ErP/Eup 2013 Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems. Cables ATX 24 4+4 PIN PCI-E 6+2 SATA Molex (PERIPHERAL) Floppy Connectors 1 2 2 5 2 1 AC/DC AC Input 200-240Vac~ 4.5A 50-60Hz DC Output +3.3V +5V +12V -12V +5Vsb Max Output Current 20A 20A 50A 0.3A 2.5A Max Combined Power 100W 600W 3.6W 12.5W Total Power 600W Specifications Model HP2-600 Rated Output Power 600W Form Factor ATX 80 PLUS Certification 80 PLUS 230V Bronze Input Voltage 200-240V Input Current 4.5A Input Frequency 50-60Hz PFC Active PFC Efficiency ≥88% at typical load Fan Type HYB Fan, 120mm Dimensions(L x W x H) 150 x 140 x 86 mm Protection OCP, OVP, SCP, OPP
