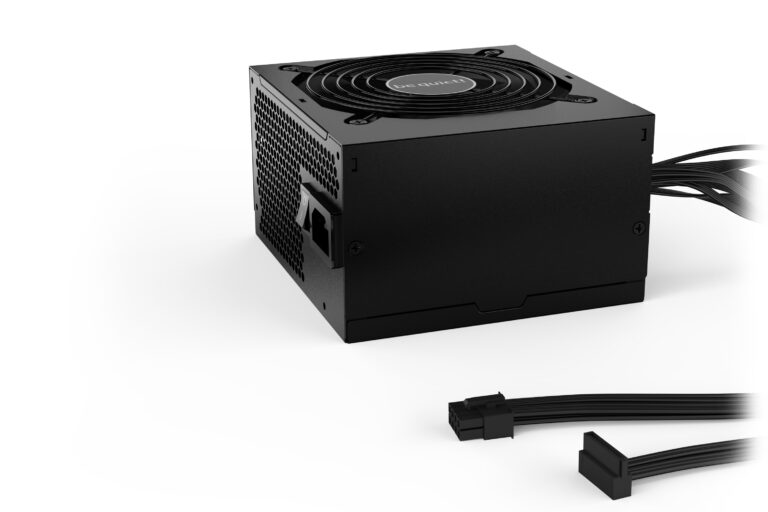

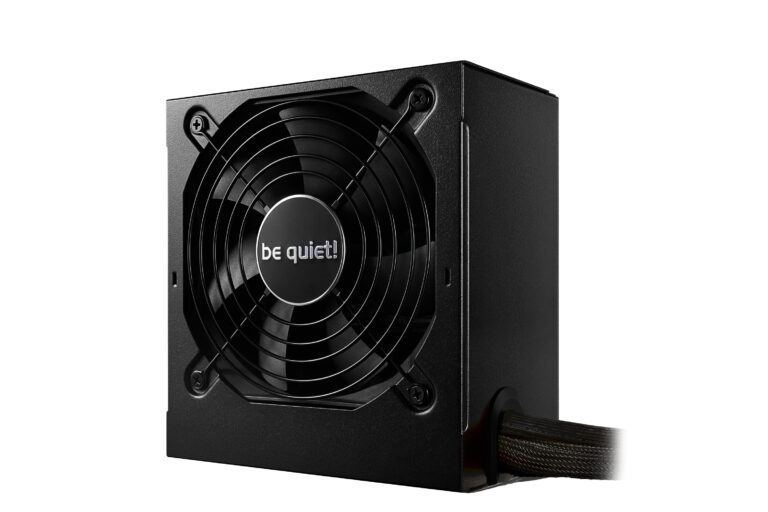

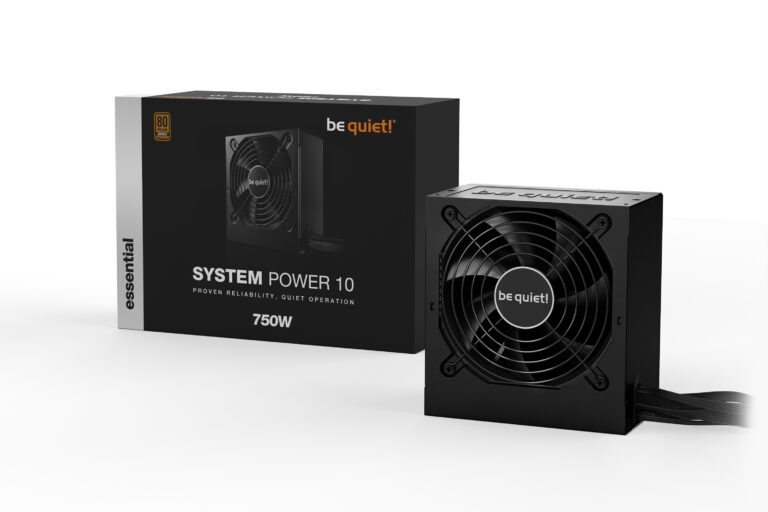

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10

Përshkrimi

PSU 750W 80+ BRONZE BE QUIET! SYSTEM POWER 10 System Power 10 750W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 750W offers even at entry-level. • Temperature-controlled 120mm quality fan reduces system noise • Rock-solid stability with a strong 12V-rail • Tight voltage regulation using DC-to-DC technology • Dependable operation to support powerful GPUs • Stand-by drain of less than 0.15 watts • 80 PLUS Bronze efficiency (up to 89.1%) • Attractive black flat cables • Complete suite of top safety features General data Model System Power 10 750W Continuous power (W) 750 Peak power (W) – Form factor Version 2.52 Form factor EPS 12V Version 2.92 Topology DC/DC Digitally controlled – Voltage ( Vac ) 200 – 240 Frequency ( Hz ) 50 Input current (A) 5 Power factor at 100% load >0.95 Modern standby ✓ Power consumption in standby (W) <0.15 Average life time (h / 25°C) > 100,000 Operating temperature up to (°C) 40 Infographics Efficiency 80 PLUS certification Bronze Efficiency (%) at 230V, 2% load 66.6 Efficiency (%) at 230V, 10% load 85.1 Efficiency (%) at 230V, 20% load 88.6 Efficiency (%) at 230V, 50% load 89.1 Efficiency (%) at 230V, 100% load 85.7 Fan and cooling technology Fan Temperature-controlled quality fan Fan size (mm) 120 Bearing technology Sleeve Motor technology 4-pole fan motor Max. fan speed (rpm) 2100 dB(A) at 10% load 8.8 dB(A) at 20% load 8.9 dB(A) at 50% load 13.3 dB(A) at 100% load 34.7 Output Multi-rail operation ( 12V rails ) 0 12V single rail operation ✓ Overclocking key – +3.3V (A) 20 +5V (A) 20 +12V1 (A) 62.5 +12V2 (A) – +12V3 (A) – +12V4 (A) – +12V5 (A) – +12V6 (A) – -12V (A) 0.3 +5Vsb (A) 3 Max. combined power 12V (W) 750 Max. combined power 12VHPWR (W) 0 Max. combined power 3.3V + 5V (W) 130 Hold-up time at 100% load (ms) – Hold-up time at 80% load (ms) 26 Power good signal (ms) 100 – 150 Cables and connectors Modular cables – Sleeved cables P24 Flat cables P4 +4, P8 , PCIe , drives Maximum cable length (cm) 81 Cable length to motherboard (cm) 55 No. of cables 7 ATX -Motherboard ( 20+4-pin ) 1 P4 +4 (CPU) 1 P8 (CPU) 1 P4 (CPU) – 12VHPWR cables 0 PCI-e 6+2-pin ( GPU ) 4 PCI-e 6-pin ( GPU ) – SATA 6 PATA 1 FDD (Floppy) – Protection OTP (over temperature protection) ✓ OCP (over current protection) ✓ OPP (over power protection) ✓ SCP (short circuit protection) ✓ OVP (over Voltage protection) ✓ UVP (under Voltage protection) ✓ SIP (Surge & Inrush protection) ✓ Safety certification BSMI – CB ✓ CCC – CE ✓ cRUus – cTUVus – CU ✓ FCC – RCM – TÜV ✓ UKCA ✓ Environmental directives Energy Star 6.1 ErP ✓ WEEE ✓ RoHS ✓ Triman ✓ Scope of delivery Thumb screws – Screws ✓ Cable ties – Velcro cable ties – User manual languages DE, EN, ES, FR, PL, RU OCK slot bracket with switch / OCK jumper – SFX -to- ATX adapter bracket – Casing Dimensions without cable (L x W x H), (mm) 150 x 140 x 86 Weight (kg) 1.95 Color Black
