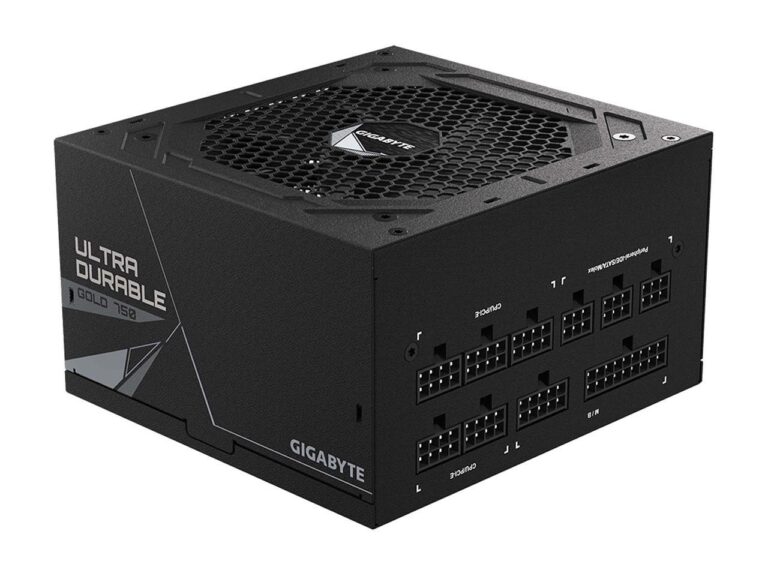

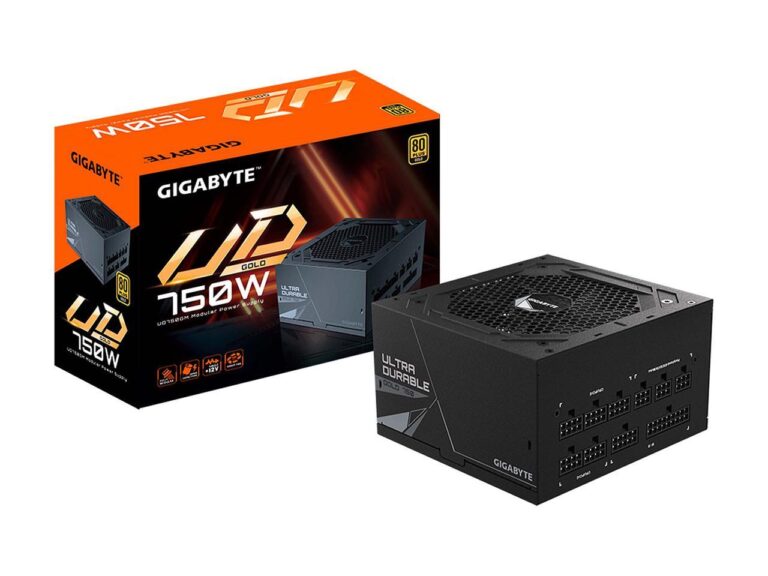

PSU 750W 80+ GOLD GIGABYTE UD750GM

Përshkrimi

PSU 750W 80+ GOLD GIGABYTE UD750GM • ATX 12V v2.31 • Full Modular • 80 PLUS GOLD Certified • 100 – 240 V 50/60 Hz • +3.3V@20A, +5V@20A, +12V@61A, -12V@0.3A, +5VSB@3A General Brand GIGABYTE Model GP-UD750GM Details Type ATX 12V v2.31 Maximum Power 750 W Fans 120mm Hydraulic Bearing (HYB) fan PFC Active Main Connector 20+4Pin +12V Rails Single PCI-Express Connector 4 x 6+2-Pin SATA Power Connector 8 Max PSU Length 140 mm Modular Full Modular Power Good Signal 100-150ms Hold-up Time >16ms Efficiency 90% at typical load Energy-Efficient 80 PLUS GOLD Certified Protection OVP/OPP/SCP/UVP/OCP/OTP Input Voltage 100 – 240 V Input Frequency Range 50/60 Hz Input Current 12-6A Output +3.3V@20A, +5V@20A, +12V@61A, -12V@0.3A, +5VSB@3A MTBF >100,000 Hours Approvals BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE Connectors 1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 4 x 8 pin (6+2) PCIe 8 x SATA 3 x 4 pin Peripheral 1 x Floppy Cable Spec 20+4Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (600mm) 2 x PCI-E 6+2Pin: Two cables (600+150mm) 4 x SATA: Two cables (600+150+150+150mm) 3 x 4Pin Peripheral + 4Pin floppy: One cable (500+120+120+150mm) Features Features Ultra Durable – Main Japanese capacitors – Enhanced thermal solution – 120mm smart hydraulic bearing (HYB) fan – OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design Dimension & Weight Dimensions 3.39″ x 5.91″ x 5.51″
