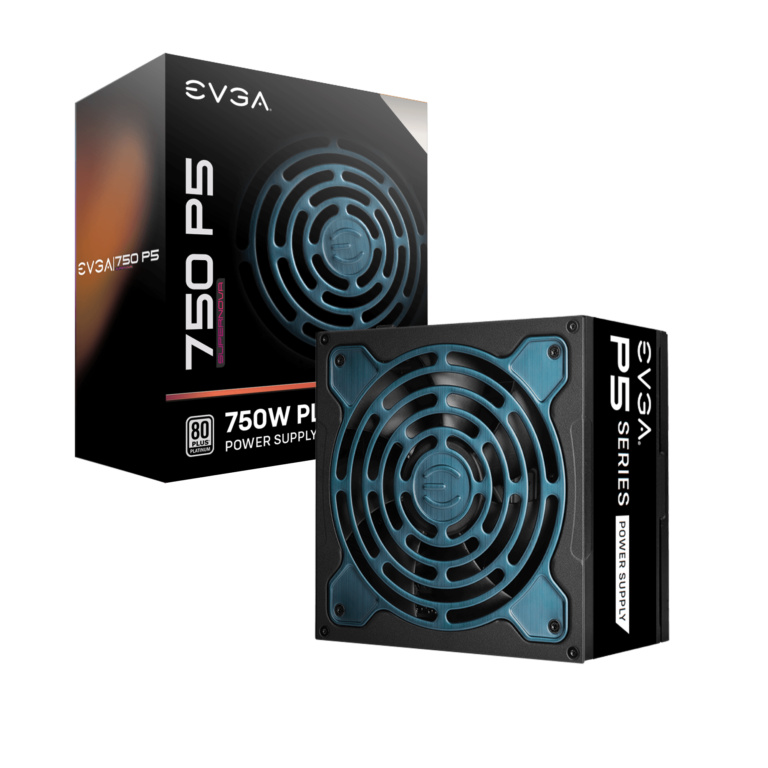

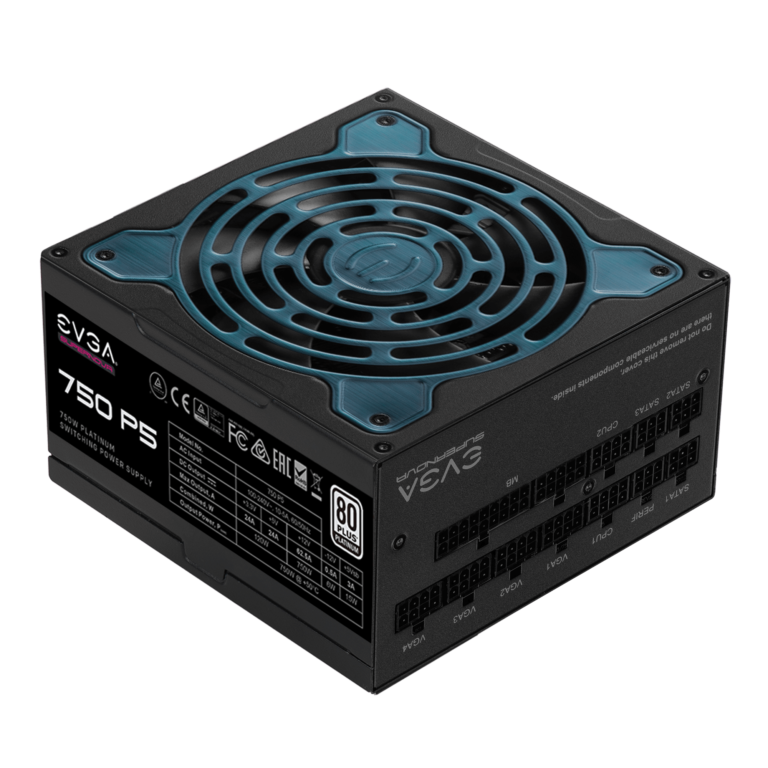

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5

Përshkrimi

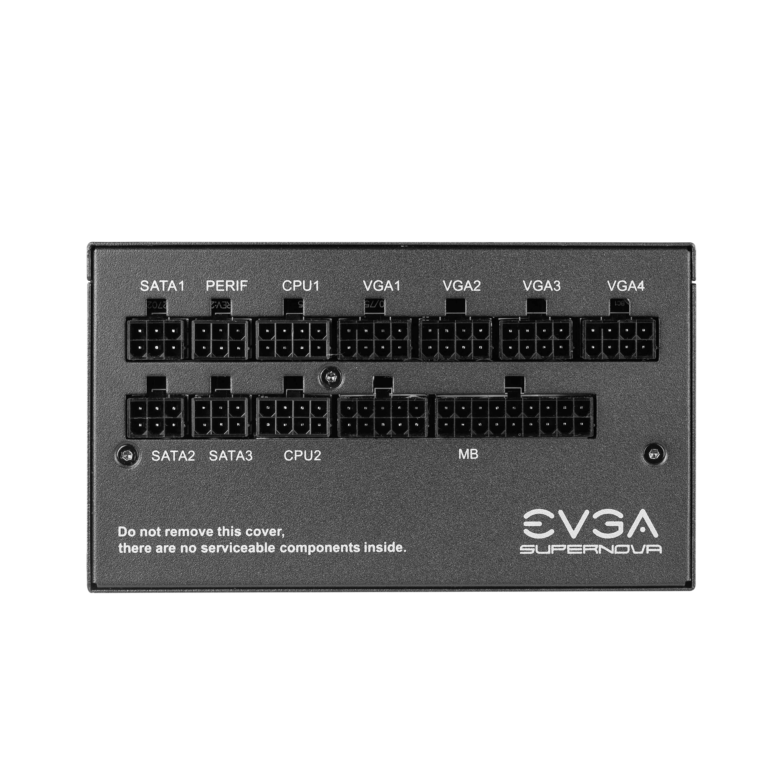

PSU 750W 80+ PLATINUM FULL MODULAR EVGA SUPERNOVA P5 • Fully Modular to reduce clutter and improve airflow • NVIDIA SLI & AMD Crossfire Ready • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) • 100% Japanese Capacitors ensure long-term reliability • Active Clamp +DC to DC design for efficient operation • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads • Active Power Factor Correction • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan. • DC-DC Converter improves 3.3V/5V stabilit CABLE LENGTH ATX Cable 1x 600mm EPS Cable 2x 700mm PCIe Cable 2x 700mm, 2x 700mm, 850mm SATA Cable 3x 550mm, 650mm, 750mm Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm Floppy Adapter 1x 100mm AC Power 1x 1500mm Modular Cable Type Full CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 2x 8pin (4+4) PCIe 6x 8pin (6+2) SATA 9x Four-Pin Peripheral 4x Floppy 1x POWER SPECS AC Input 100-240V~, 10-5A, 60/50 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 24A 24A 62.5A 3A 0.5A 120W 750W 15W 6W Total 750W ADDITIONAL DETAILS Operating Temperature 0° to 50° C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Net Weight 6.50 lbs Size 86mm (H) x 150mm (W) x 150mm (L) Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing
