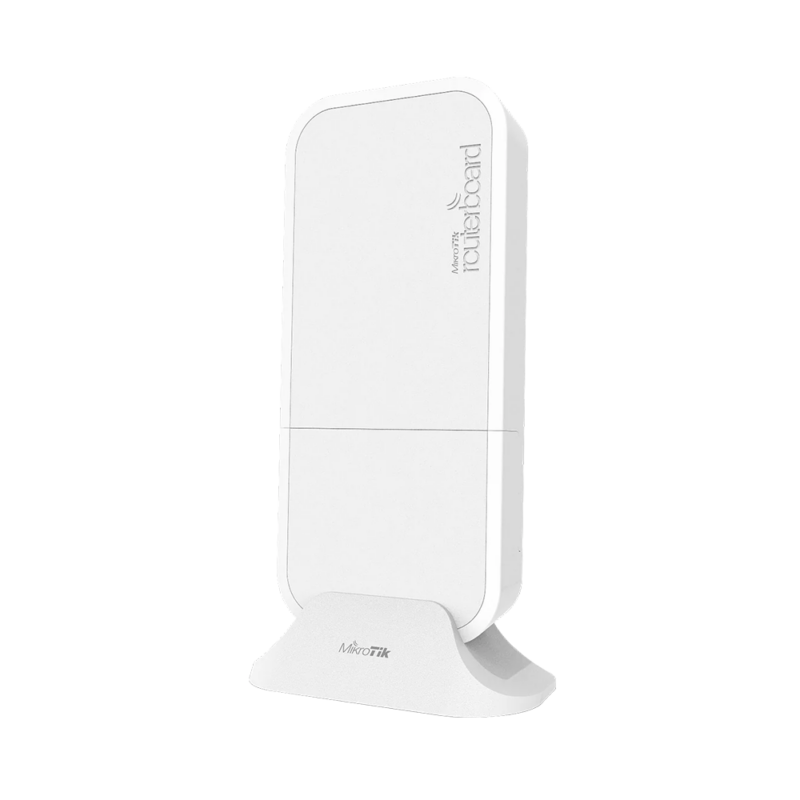

wAP ac

Përshkrimi

Specifications Details Product code RBwAPG-5HacT2HnD Architecture MIPSBE CPU QCA9556 CPU core count 1 CPU nominal frequency 720 MHz Dimensions 185 x 85 x 30 mm License level 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -40 to 50C Powering Details Max Power consumption 12W PoE in 802.3af/at PoE in input Voltage 11-57 V Number of DC inputs 1 (PoE-IN) Wireless Details Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model QCA9556 Wireless 5 GHz number of chains 3 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 2 Wireless 5 GHz chip model QCA9880 Ethernet Details 10/100/1000 Ethernet ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 25 -95 11MBit/s 25 -90 6MBit/s 25 -95 54MBit/s 23 -80 MCS0 25 -95 MCS7 22 -74 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 25 -96 54MBit/s 25 -81 MCS0 25 -96 MCS7 24 -77 MCS9 23 -72
