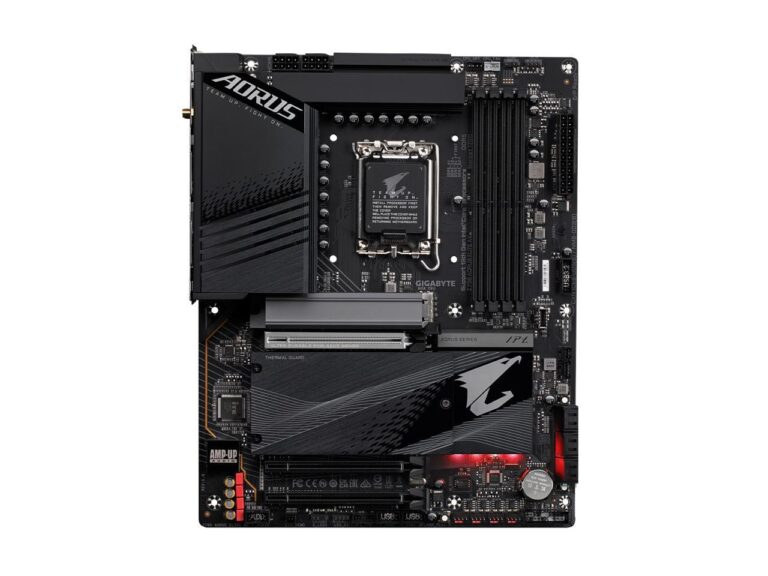

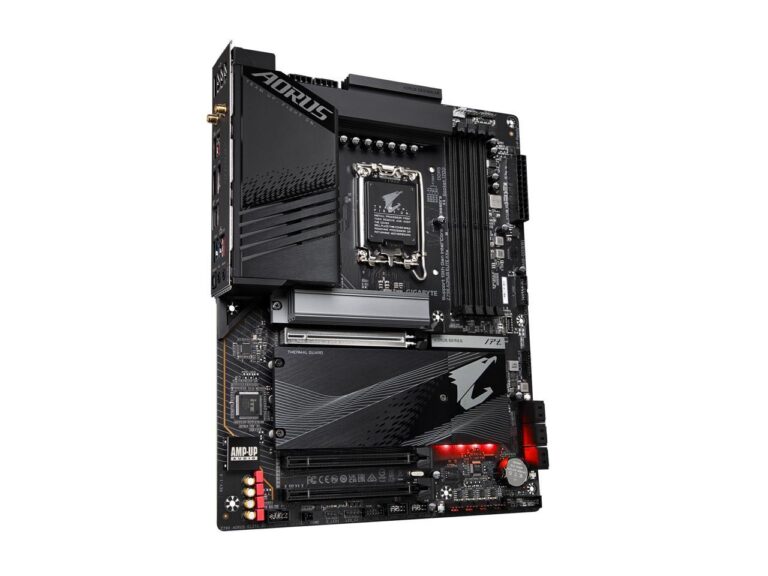

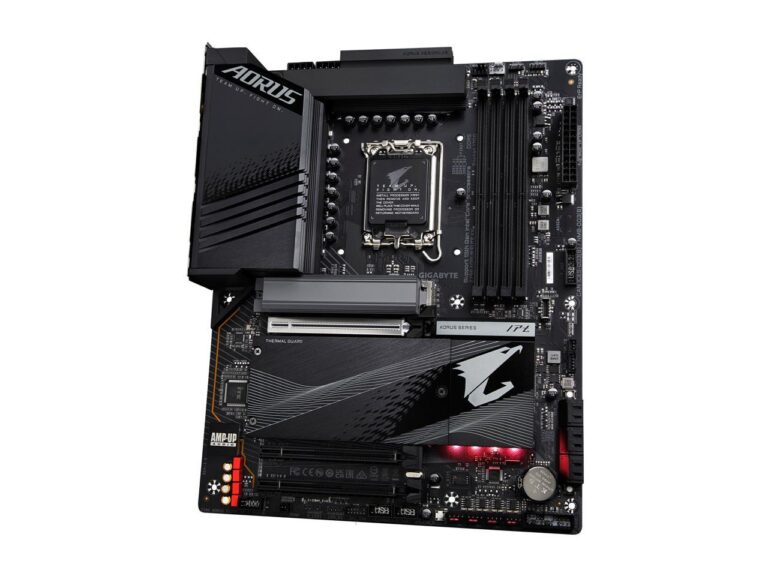

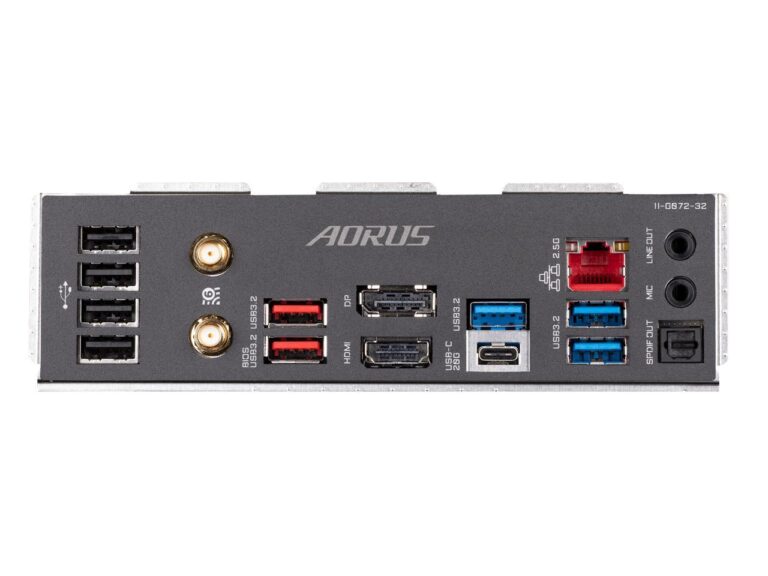

MBO GIGABYTE Z790 AORUS ELITE AX

Përshkrimi

MBO GIGABYTE Z790 AORUS ELITE AX • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors • DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support • Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution with 70A Power Stage • Cutting-Edge Thermal Design: M.2 Thermal Guard III, Fully Covered MOSFET Heatsinks, PCIe Ultra Durable Armor, 6-Layer PCB • Next Gen Connectivity: SMD PCIe 5.0, 4* PCIe 4.0 x4 M.2, USB 3.2 Gen 2×2 Type-C • EZ-Latch: PCIe 5.0 EZ-Latch with a Quick Release & Screwless Design • Fast Networking: 2.5GbE LAN, Intel WiFi 6E 802.11ax, 2T2R & BT5 with AORUS Antenna • Dynamic Audio: High-End Audio Capacitor, Audiophile WIMA Capacitors • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU SPECS Best Seller Ranking Model Brand GIGABYTE Model Z790 AORUS ELITE AX Supported CPU CPU Socket Type LGA 1700 CPU Type Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors Chipsets Chipset Intel Z790 Memory Number of Memory Slots 4x288pin (DDR5) Memory Standard Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory Supported 192GB Channel Supported Dual Channel SPECS Expansion Slots PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) PCI Express 4.0 x16 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Storage Devices SATA 6Gb/s 6 x SATA 6Gb/s M.2 CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Onboard Audio Audio Chipset Realtek Audio CODEC High Definition Audio Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Max LAN Speed 2.5Gbps Wireless LAN Intel Wi-Fi 6E AX211 – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. Bluetooth Bluetooth 5.3 Rear Panel Ports Back I/O Ports 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks SPECS Internal I/O Connectors Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Other Connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12.0″ x 9.6″ Power Pin 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Windows Compatibility Windows 11 Supported SPECS Features Features BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
