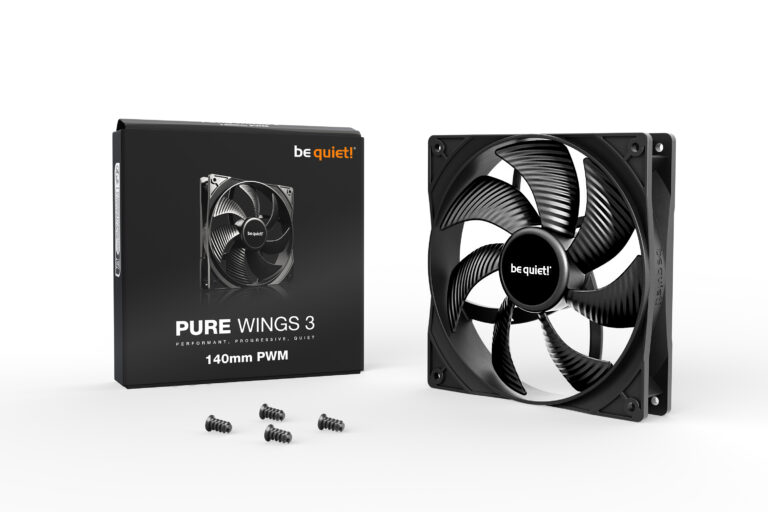

FAN BE QUIET! PURE WINGS 3 140MM

Description

FAN BE QUIET! PURE WINGS 3 140MM Performant, Progressive, Quiet With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system. • Optimized fan frame for outstanding performance on radiators • Newly designed fan blades and re-arranged angle for extraordinary air pressure • Pure Wings 3 140mm PWM can be operated with very low minimum rpm for very quiet operation • Long life rifle bearing gives an operating lifetime of 80,000 hours • Product conception, design and quality control in Germany General data Model Pure Wings 3 140mm PWM Dimensions (mm) 140 Color option Black Lighting – Fan speed at 100% PWM / 12V (rpm) 1200 Noise level at 100% PWM / 12V ( dB(A) ) 21.9 Airflow at 100% PWM / 12V ( CFM / m3/h ) 57.4 / 97.5 Air Pressure at 100% PWM / 12V ( mm H2O ) 0.96 Infographics Mechanical specifications Dimensions (L x W x H), (mm) 140 x 140 x 25 Weight incl. fixed cables (g) 180 Bearing technology Rifle Motor technology 4-pole fan motor Push pin fixing – Screw fixing ✓ Cables / Connectors Daisy-chain compatible – Lighting connector – Connector 4-pin PWM Cable length (mm) 460 Cable sleeve – Performance / Noise Airflow at 100% PWM / 12V ( CFM / m3/h ) 57.4 / 97.5 Air Pressure at 100% PWM / 12V ( mm H2O ) 0.96 Noise level at 100% PWM / 12V ( dB(A) ) 21.9 Lifespan (h / 25°C) 80,000 Zero RPM mode – Electrical specifications Rated Voltage DC (V) 12 Operating Voltage DC (V) 5 – 13.2 Current consumption (A) 0.06 Safety current (A) 0.30 Input power (W) 3.6 Rated Current LED (A) – Accessories 3-pin to 4-pin 12V-connector – 12V to 7V adapter – 12V to 5V adapter – Screws 4 Push pins – hard plastic washer – Others –
