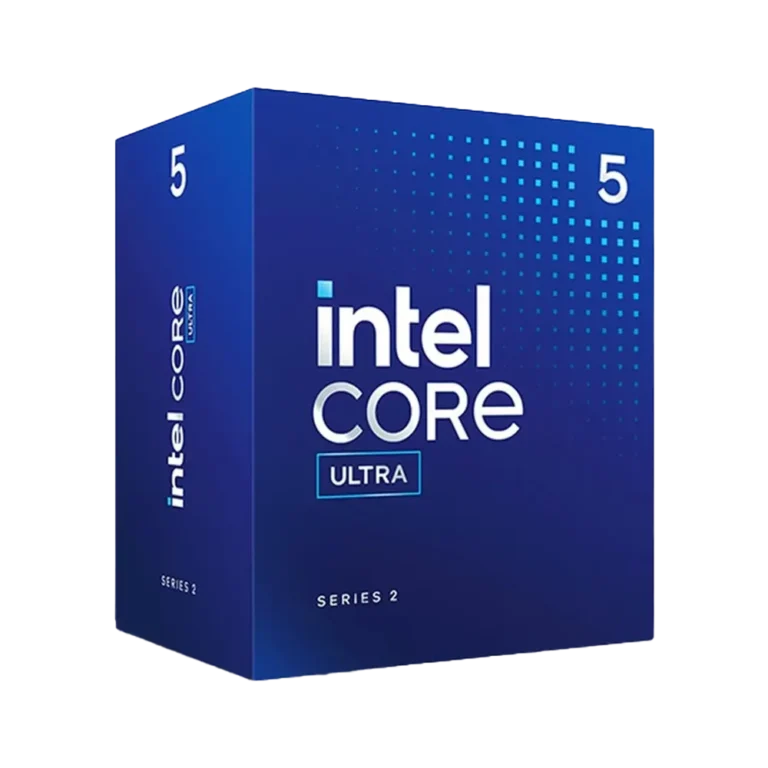

Intel Core Ultra 5 225F Box 10C/10Th| S1851

Description

Product Collection Intel Core Ultra Processors (Series 2) Code Name Products formerly Arrow Lake Vertical Segment Desktop Processor Number 225F Overall Peak TOPS (Int8) 19 Recommended Customer Price $221.00-$231.00 CPU Specifications Total Cores 10 # of Performance-cores 6 # of Efficient-cores 4 # of Low Power Efficient-cores 0 Total Threads 10 Max Turbo Frequency 4.9 GHz Performance-core Max Turbo Frequency 4.9 GHz Efficient-core Max Turbo Frequency 4.4 GHz Performance-core Base Frequency 3.3 GHz Efficient-core Base Frequency 2.7 GHz Cache 20 MB Intel Smart Cache Total L2 Cache 22 MB Processor Base Power 65 W Maximum Turbo Power 121 W Intel Deep Learning Boost (Intel DL Boost) on CPU Yes AI Software Frameworks Supported by CPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN CPU Lithography TSMC N3B Supplemental Information Marketing Status Launched Launch Date Q1’25 Embedded Options Available No Use Conditions PC/Client/Tablet Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 256 GB Memory Types Up to DDR5 6400 MT/s Max # of Memory Channels 2 ECC Memory Supported ‡ No GPU Specifications Graphics Output n/a X e -cores 0 Intel Quick Sync Video No # of Displays Supported ‡ 0 NPU Specifications NPU Name ‡ Intel AI Boost NPU Peak TOPS (Int8) 13 Sparsity Support Yes Windows Studio Effects Support Yes AI Software Frameworks Supported by NPU OpenVINO, WindowsML, DirectML, ONNX RT, WebNN Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Intel Thunderbolt 4 Yes Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 Max # of PCI Express Lanes 24 Package Specifications Sockets Supported FCLGA1851 Thermal Solution Specification PCG 2022C Max Operating Temperature 105 °C Package Size 45 mm x 37.5 mm Advanced Technologies Intel Gaussian & Neural Accelerator 3.5 Intel Thread Director Yes Intel Speed Shift Technology Yes Intel Turbo Boost Technology ‡ 2.0 Intel Hyper-Threading Technology ‡ No Intel 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Yes Enhanced Intel SpeedStep Technology Yes Thermal Monitoring Technologies Yes Intel Volume Management Device (VMD) Yes Security & Reliability Intel Threat Detection Technology (TDT) Yes Intel Active Management Technology (AMT) ‡ No Intel Standard Manageability (ISM) ‡ Yes Intel Remote Platform Erase (RPE) ‡ No Intel One-Click Recovery ‡ No Intel Secure Key Yes Intel Control-Flow Enforcement Technology Yes Intel Total Memory Encryption – Multi Key No Intel AES New Instructions Yes Intel Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel OS Guard Yes Intel Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel Stable IT Platform Program (SIPP) No Intel Virtualization Technology with Redirect Protection (VT-rp) ‡ No Intel Virtualization Technology (VT-x) ‡ Yes Intel Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel VT-x with Extended Page Tables (EPT) ‡ Yes
