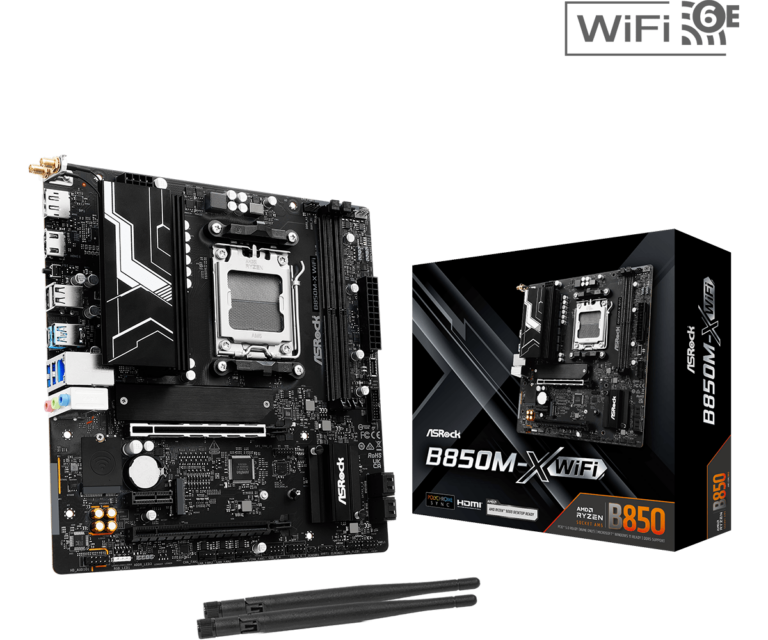

MBO ASROCK B850M-X WIFI AM5

Description

MBO ASROCK B850M-X WIFI AM5 Detail Specification Memory Dual Channel DDR5 Memory Technology, 2 x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC), Max. capacity of system memory: 128GB, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Expansion Slot (CPU) 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Expansion Slot (Chipset) 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU), 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG), Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual Network Usage Statistics, User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Dual-Band 2×2 with extended 6GHz band (requires 6GHz compatible router), Bluetooth 5.2, MU-MIMO USB 3 x USB 3.2 Gen1 Type-A (Rear), 1 x USB 2.0 (Rear), 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 2 x USB 3.2 Gen1 Type-A (Front), 5 x USB 2.0 (1 Rear, 4 Front), All USB ports support ESD Protection Rear Panel I/O 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks (Line in / Front Speaker / Microphone) Storage 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*, 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* Connector 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header*, 3 x Addressable LED Headers** , 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***, 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***, 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen1 Header Software and UEFI ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash Software Support Microsoft Windows OS 10 64-bit / 11 64-bit, FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) Certifications 1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas Platform Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm, Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* Unique Feature Superb Productivity, PCIe Gen5 (M.2), Dual Channel DDR5, Rock-Solid Durability, 6+1+1 Power Phase, Dr.MOS for VCore, Ultrafast Connectivity, 2.5G LAN, 802.11axe Wi-Fi 6E Module, EZ Update, BIOS Flashback Button, EZ Troubleshooter, ASRock Post Status Checker Chipset AMD B850 Specifications expand_less Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s LAN Chip Dragon RTL8125BG Wi-Fi / Bluetooth Yes Motherboard Motherboard Chipset AMD B850 Form Factor Motherboard formfactor Micro-ATX CPU CPU Manufacturer AMD CPU Socket AM5 Lighting Lighting / RGB Yes Colour Primary Colour Black Fan Header 4 Pin Fan Connectors 6 Memory Max. Memory 128 GB Memory Type DDR5 Memory Form Factor DIMM Max. Memory Speed (OC) 8200 MT/s EEC Support Yes Memory slots 2x Performance Profile AMD EXPO, XMP Expansion Slots PCIe x16 slots (total) 1 PCIe x4 slots (total) 1 PCIe x1 slots (total) 1 PCIe 4.0 x16 mechanical slot 2 PCIe 4.0 x1 mechanical slot 1 Internal Ports CPU Power Supply 1x 8-Pin USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1 USB 3.0 (internal) Header 1 USB 3.0 (internal) Possible Ports 2 USB 2.0 (internal) Header 2 USB 2.0 (internal) Possible Ports 4 Front Panel Audio Header Yes SPI TPM Header Yes External Ports USB 3.0 (external) Type C 1 USB 3.0 (external) Type A 3 USB 2.0 (external) Type A 2 Display Connectors HDMI (1x), Display Port (1x) Storage Ports M.2 PCIe 4.0 x4 1 M.2 PCIe 5.0 x4 1 SATA 6G (internal) 4 Cooling M.2 Heatsinks Yes VRM Heatsinks Yes Audio Soundchip Realtek ALC897
