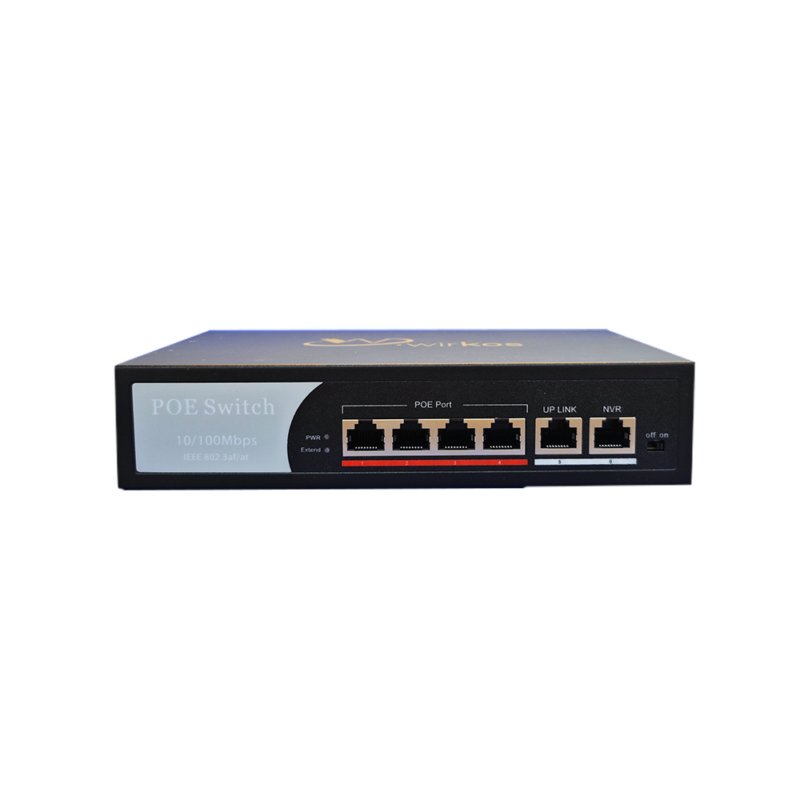

POE Switch/4+2 100Mbps

Description

• HD monitor transmission and power supply • Wireless AP layout transmission and power supply • Network telephone transmission , intelligent house and home system • Intelligent transportation supervisory system(ITS) • High-speed Way supervisory/Tele-Communication System • Security protection system, TV medical treatment • Long-distance Muti-media Schooling, Campus monitoring • Long-distance broadcast television transmission system • High-building Security Protection, Military Tele-Com projects Product Model: WKPOE-42 Product Description: 4 x 10/100M copper RJ45 Ports 2x 10/100M copper RJ45 Ports. standard PoE Switch. Port 1-4 support PoE function with port isolation function. IEEE802.3af/at, max PoE power output is 30W. Total power is 65W. supports Vlan. Built-in power supply. Product Name 6-Port Standard PoE Switch Model WKPOE-42 Connector Type 4x 10/100M copper RJ45 Ports 2x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing) Port 1-4: PoE port, max PoE output for each port is 30W. Network Media 100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); Bandwidth 1.2Gbps Address Database Size 2K Network Latency maximum delay less than 20 microseconds Forwarding Mode Store-And-Forward Network Protocols IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at Power Supply Input: AC100-240V, 50-60Hz PoE Ports 4*PoE Ports PoE Port Power Max 30W PoE Standard IEEE802.3af/at Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) Certification CE Mark ,commercial CE/LVD EN60950 Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 （CISPR 22）， Class B Transmission Distance Max 150 meters Power Supply Type 1,2( )/3,6(-) (Default) ; 45( ),78(-) (Option)
