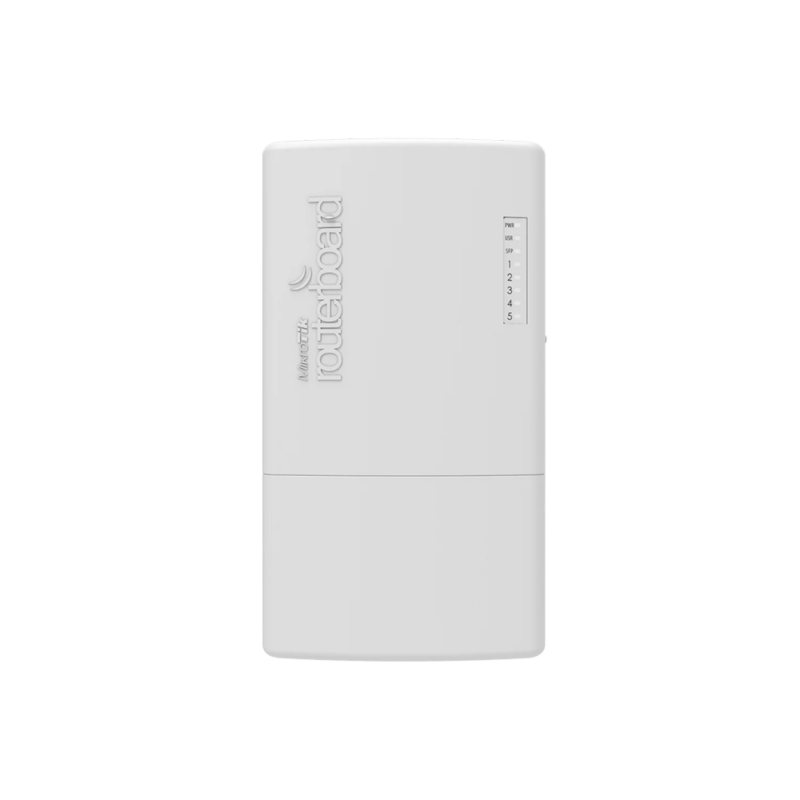

PowerBox Pro

Description

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations. It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used. The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Specifications Details Product code RB960PGS-PB Architecture MIPSBE CPU QCA9557 CPU core count 1 CPU nominal frequency 800 MHz Dimensions 125 x 52 x 225 mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 54 W Max power consumption without attachments 6 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 12-57 V PoE-out Details PoE-out ports Ether2-Ether5 PoE out 802.3af/at Max out per port output (input 18-30 V) 1 A Max out per port output (input 30-57 V) 450 mA Max total out (A) 2 A Ethernet Details 10/100/1000 Ethernet ports 5 Fiber Details SFP ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS
