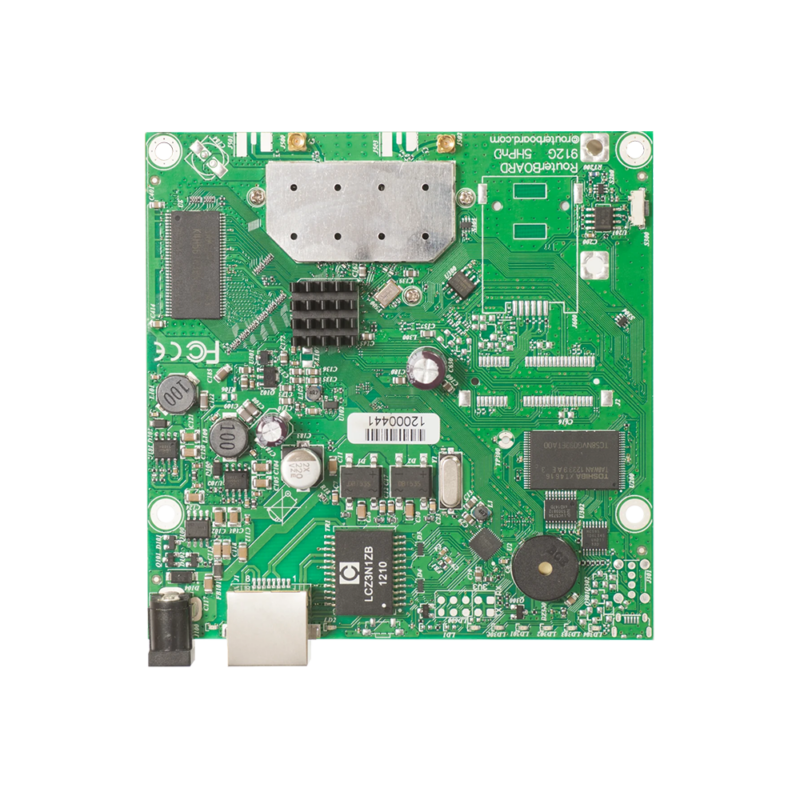

RB911G-5HPnD

Description

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds. The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports. – RB911G-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – RB911G-5HPnD (International) supports 5150MHz-5875MHz range. Product specifications Details Product code RB911G-5HPnD 10/100/1000 Ethernet ports 1 802.11a Yes 802.11n Yes Architecture MIPS-BE CPU AR9342 CPU core count 1 CPU nominal frequency 600 MHz Dimensions 105x105mm License level 3 Max Power consumption 11W at 24V Number of chains 2 Operating System RouterOS PCB temperature monitor Yes PoE in Yes Power Jack 1 Size of RAM 64 MB Storage size 128 MB Storage type NAND Supported input voltage 8 V – 30 V Tested ambient temperature -40°C .. 70°C tested Voltage Monitor Yes Wireless chip model AR9342 Wireless standards 802.11a/n
