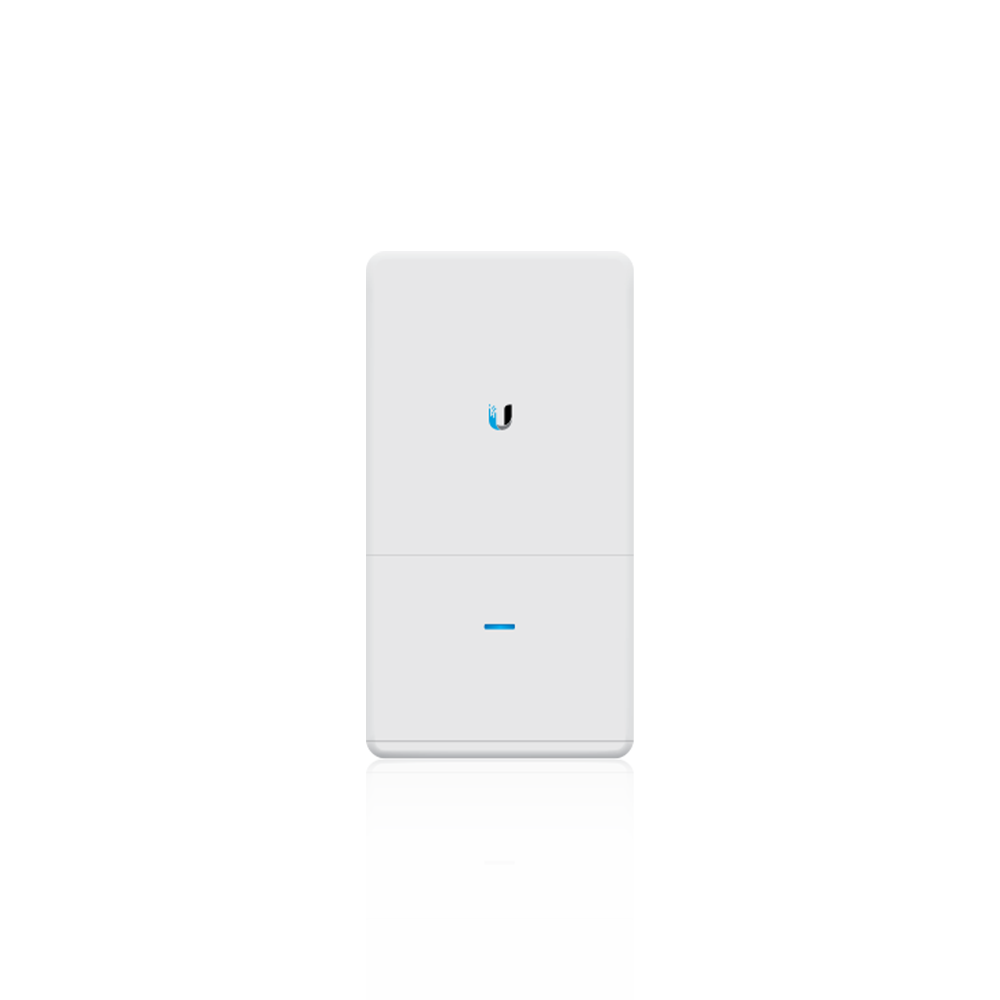

UniFi AC Outdoor AP (EOL)

Description

Specification • Dimensions 340 x 180 x 65 mm • Weight 1.55 kg (with Wall Mount) 2 kg (with Pole Mount) • Networking Interface (2) 10/100/1000 Ethernet Ports • Buttons: Reset • 2.4 GHz Antenna – Integrated 5 dBi Omni (Supports 3×3 MIMO with Spatial Diversity) • 5 GHz Antenna- Integrated 5 dBi Omni (Supports 3×3 MIMO with Spatial Diversity) • Wi-Fi Standards 802.11 a/b/g/n/ac • Power Method: Passive Power over Ethernet (48V), 802.3at Supported (Supported Voltage Range: 39 to 57VDC) • Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included) • Maximum Power Consumption: 22 W • 2.4 GHz and 5 GHz Maximum TX Power – 28 dBm • BSSID Up to Four Per Radio • Power Save Supported • Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i • Certifications CE, FCC, IC • Mounting Wall and Pole (Kits Included) • Operating Temperature -30 to 60 °C • Operating Humidity 5 – 80% Non-Condensing Advanced Traffic Management • VLAN 802.1Q • Advanced QoS Per-User Rate Limiting • Guest Traffic Isolation Supported • WMM Voice, Video, Best Effort, and Background • Concurrent Clients 200 Supported Data Rates (Mbps) • 802.11a – 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11n – 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) • 802.11ac – 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) • 802.11b – 1, 2, 5.5, 11 Mbps • 802.11g – 6, 9, 12, 18, 24, 36, 48, 54 Mbps
